Description

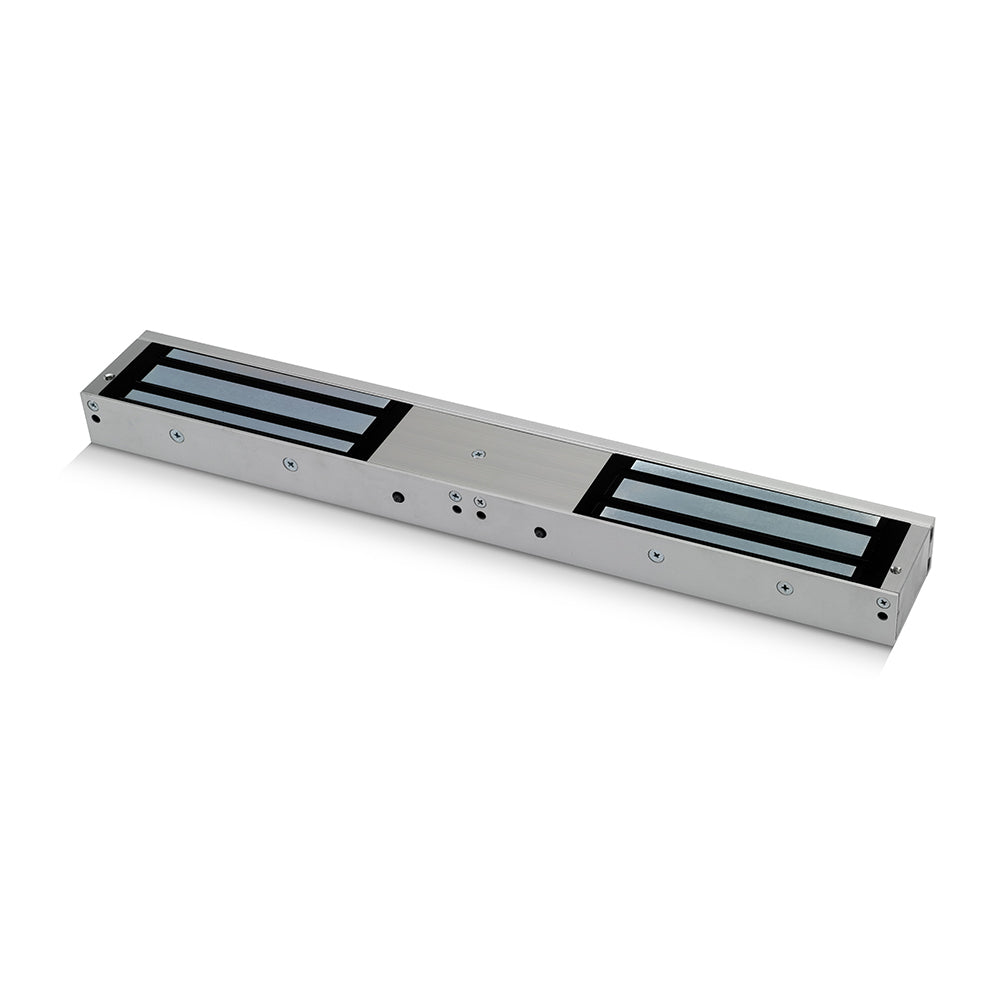

Two unmonitored magnets, each holding up to 1200lbs (544kg), give the FR-U10060 the strength for double fire door sets. The 40 × 67 × 532mm aluminium unit is FD30 and FD60 rated, fire tested to BS EN1634:1, fitted with safety bolts and covered by a one hour UK fire certificate.
Key Features
- FD30 + FD60 Rated
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Unmonitored
- Safety bolts fitted
- Fire tested: BS EN1634:1
- Holding force up to 2 x 1200lbs (544Kg)
- Electro-less nickel plated armature
- 1 Hour UK fire certificate
Specification
- Dimensions: 40 × 67 × 532mm (H × W × D)
