Description

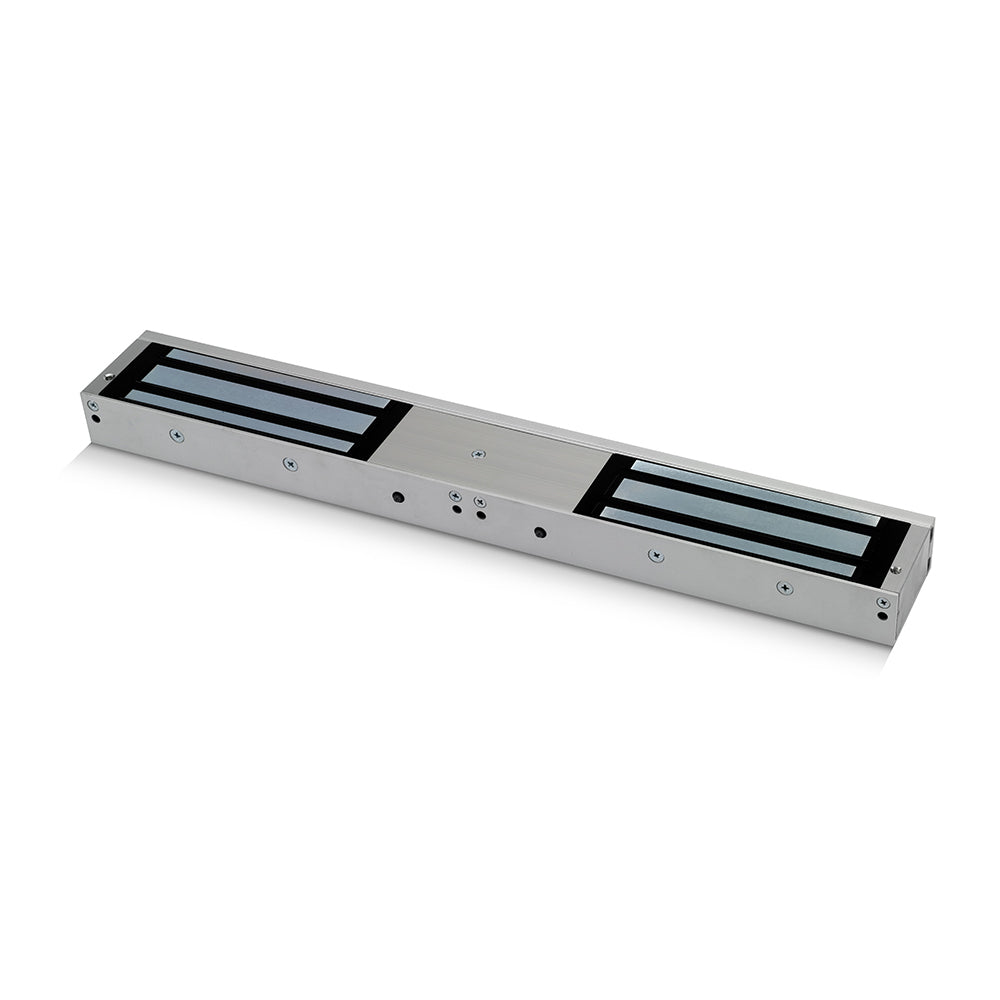

Securing pairs of doors with serious force, the FR-U10040 houses two monitored magnets rated at up to 1200lbs (544kg) each in a single 532mm aluminium body. Red and green status LEDs, safety bolts, FD30 and FD60 ratings and a one hour UK fire certificate complete a thorough specification, with selectable 12–24Vdc input.
Key Features
- FD30 + FD60 Rated
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Monitored
- Safety bolts fitted
- Fire tested: BS EN1634:1
- Holding force up to 2 x 1200lbs (544Kg)
- Electro-less nickel plated armature
- 1 Hour UK fire certificate
- Status LED: Red and Green
Specification
- Dimensions: 40 × 67 × 532mm (H × W × D)
