Description

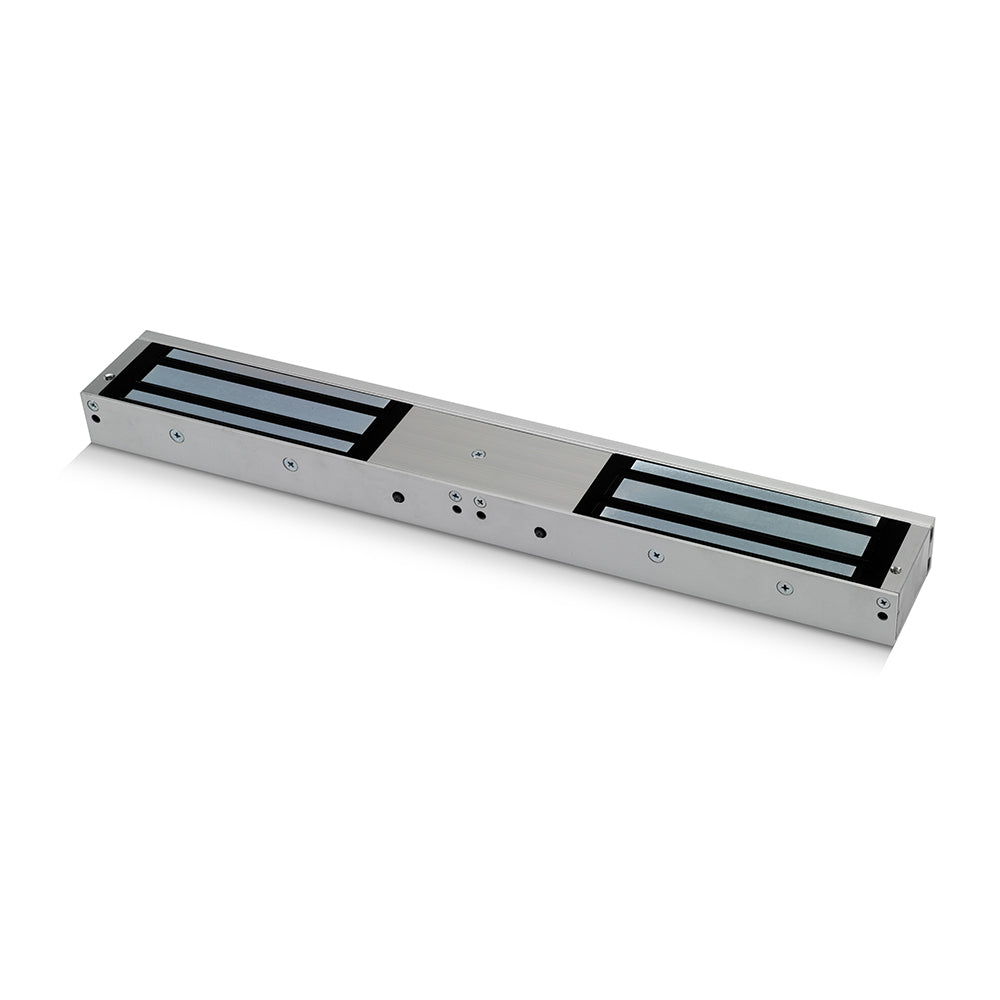

Designed for double doors, the U10040 monitored magnet houses two locking faces in a single 532mm aluminium unit, each rated up to 1200lbs (544Kg). It runs on selectable 12~24Vdc, offers built-in monitoring with a red and green status LED, and features an electro-less nickel plated armature.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Monitored
- Holding force up to 2 x 1200lbs (2 x 544Kg)
- Electro-less nickel plated armature
- Status LED: Red and Green
Specification
- Dimensions: 40 × 67 × 532mm (H × W × D)
