Description

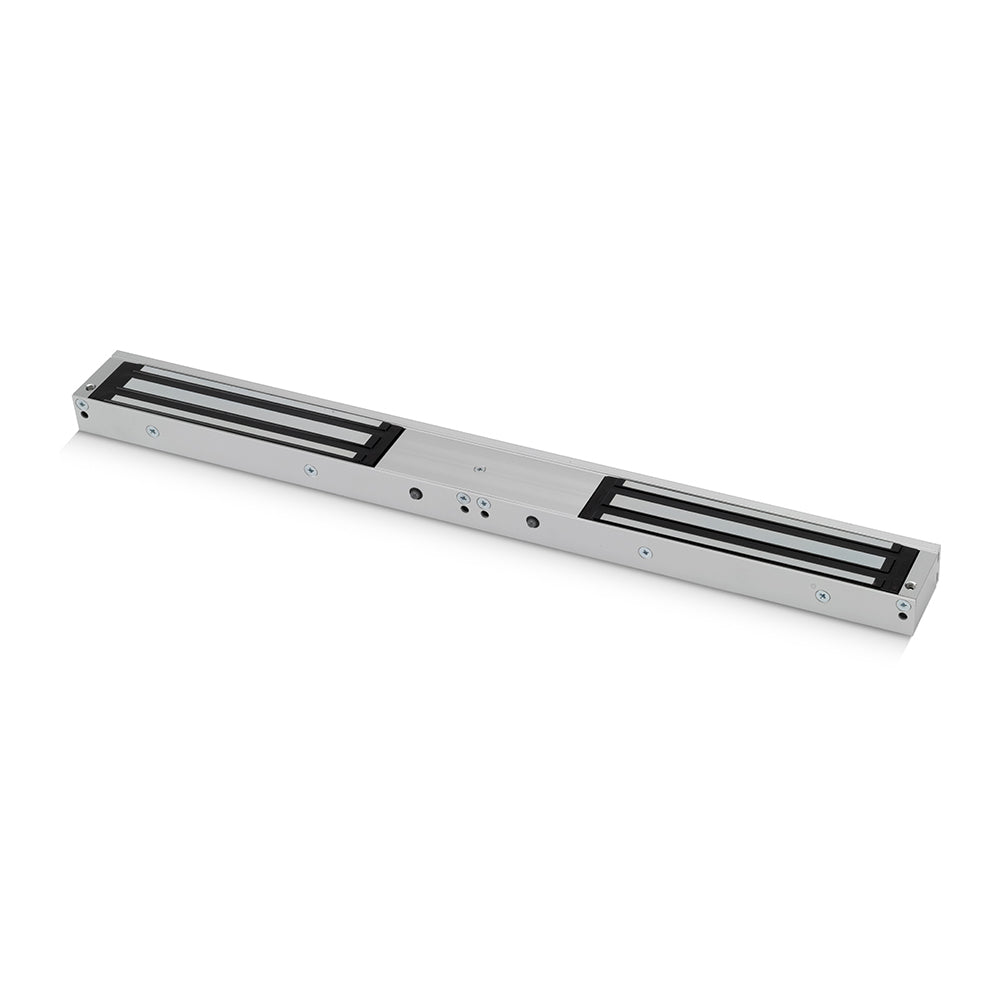

Pairing two monitored magnets in one aluminium housing, the U10005 secures double doors with up to 600lbs (272Kg) of holding force per magnet. Red and green status LEDs give instant confirmation of lock state, and the operating voltage is selectable between 12 and 24Vdc.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Monitored
- Holding force up to 2 x 600lbs (272Kg)
- Electro-less nickel plated armature
- Status LED: RED and GREEN
Specification
- Dimensions: 26 × 42 × 500mm (H × W × D)
