Description

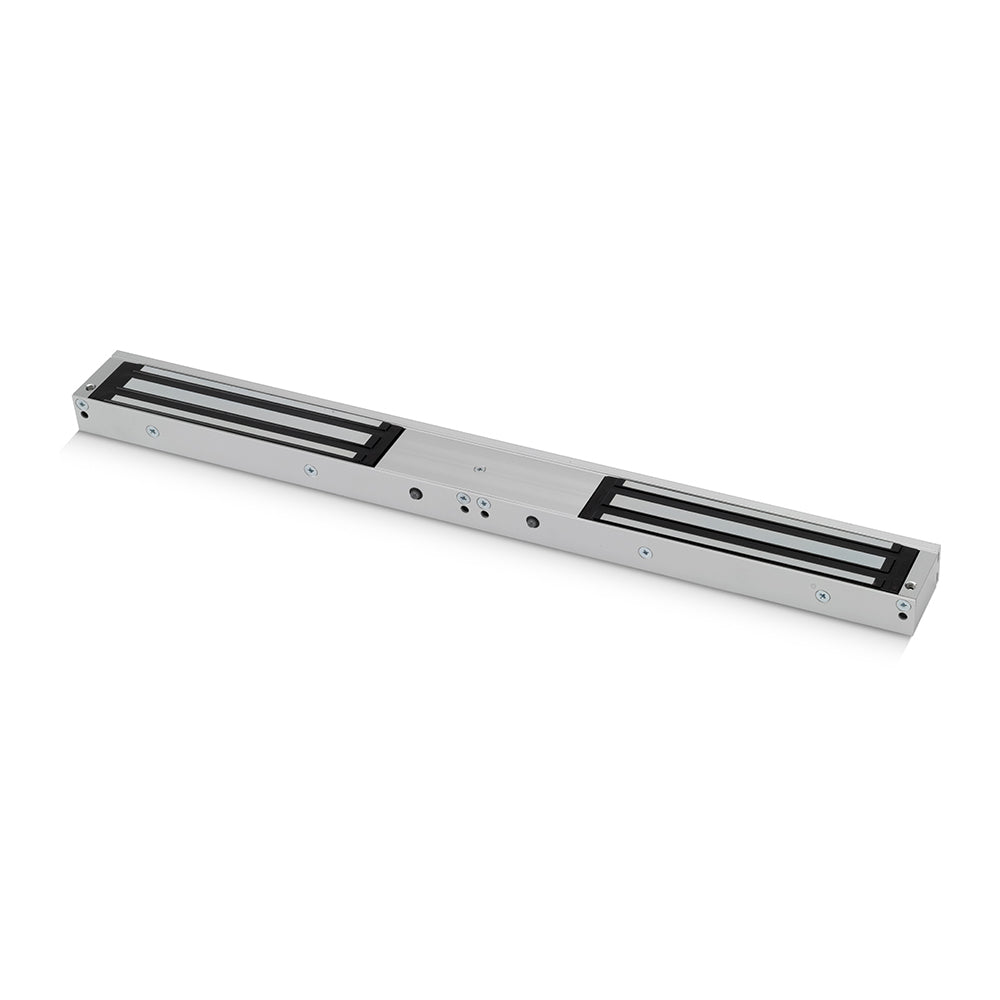

Securing double doors is straightforward with the 10005, a surface-mounted double mini magnet providing up to 600lbs (272kg) of holding force per door. It runs on 12 to 24Vdc in fail-safe (power-to-lock) mode, and red and green status LEDs give a clear visual check on each leaf at a glance.
Key Features
- Operating voltage 12~24Vdc
- Aluminium
- Fail-Safe (Power to Lock)
- Holding force up to 600lbs x 2 (272Kg x 2)
- Surface mount
- Status LED: RED and GREEN
Specification
- Dimensions: 25 × 43 × 500mm (H × W × D)
