Description

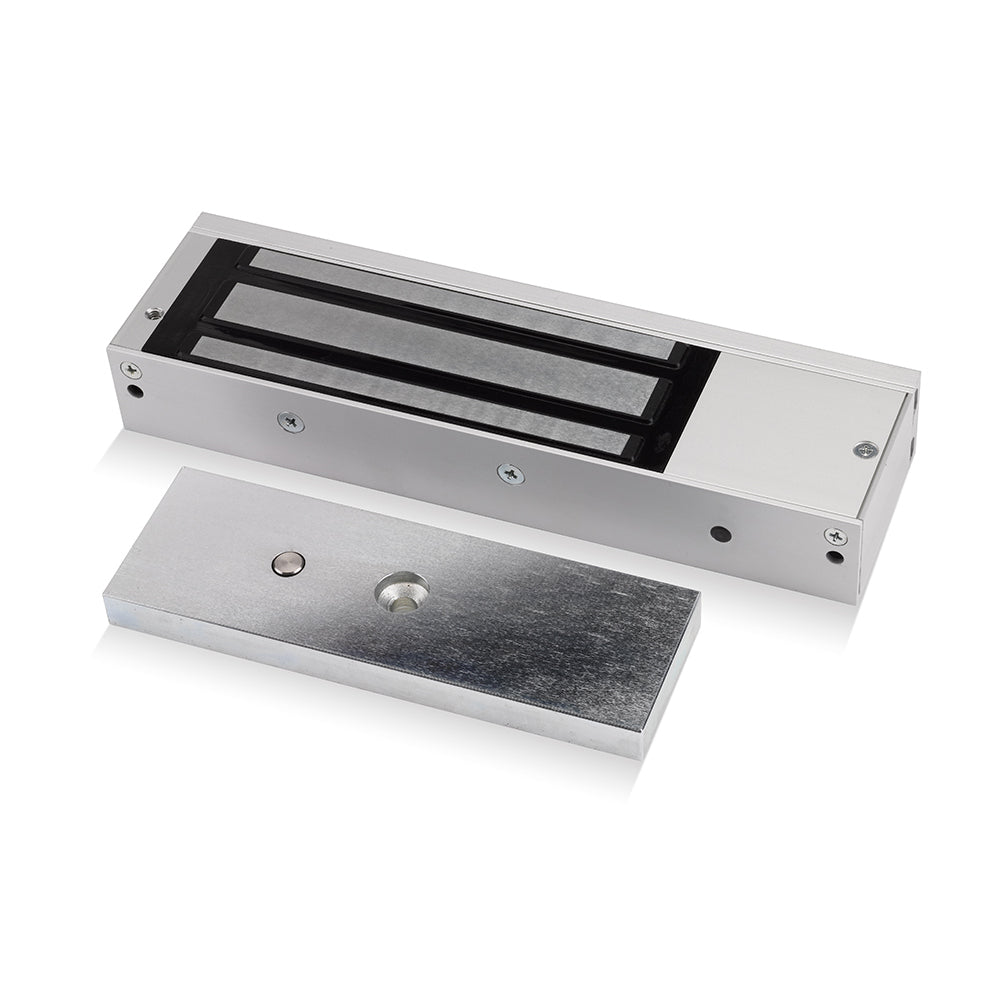

Status reporting comes as standard on the FR-U10020, a monitored fire rated magnet holding up to 1200lbs (544kg). Its red and green LEDs indicate condition at a glance, while FD30 and FD60 ratings, a one hour UK fire certificate and selectable 12–24Vdc operation round out the specification.
Key Features
- FD30 + FD60 Rated
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Monitored
- Safety bolts fitted
- Fire tested: BS EN1634:1
- Holding force up to 1200lbs (544Kg)
- Electro-less nickel plated armature
- 1 Hour UK fire certificate
- Status LED: Red and Green
Specification
- Dimensions: 40 × 67 × 268mm (H × W × D)
