Description

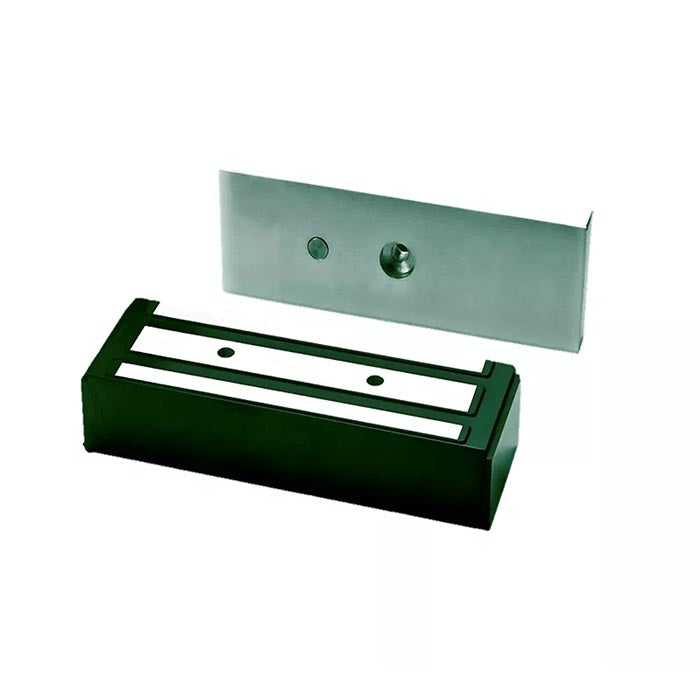

Measuring 62 × 38 × 190mm, the U10020M monitored standard magnet packs up to 1200lbs (544Kg) of holding force into a compact aluminium body. Operating voltage is selectable between 12 and 24Vdc, and an integrated red and green status LED provides simple visual confirmation of lock state.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 1200lbs (544Kg)
- Electro-less nickel plated armature
- Status LED: Red and Green
Specification
- Dimensions: H:62 × W:38 × L:190mm (H × W × D)
