Description

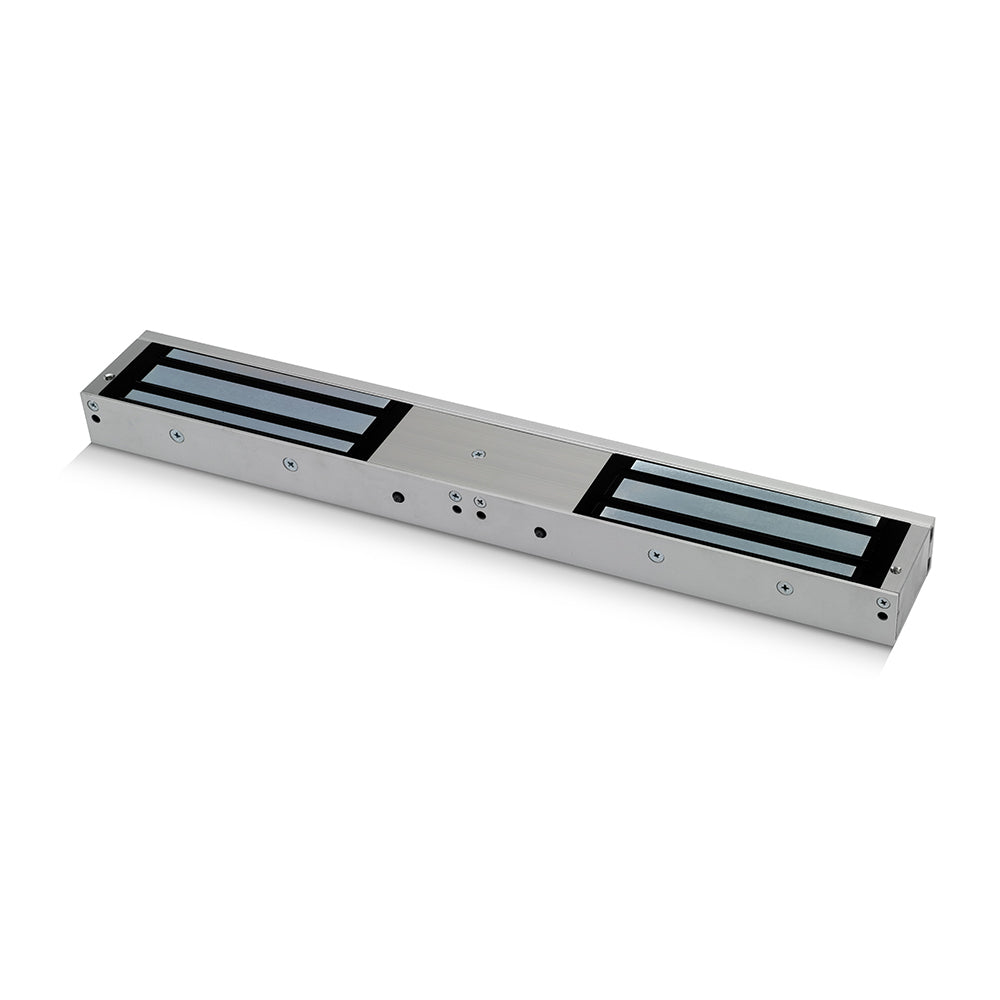

Securing both leaves of a double door, the U10060DS unmonitored magnet combines two 1200lbs (544Kg) holding faces with an independent door status contact for position reporting. It accepts a selectable 12~24Vdc supply, and its 532mm aluminium housing carries electro-less nickel plated armatures throughout.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Unmonitored
- Holding force up to 2 x 1200lbs (2 x544Kg)
- Electro-less nickel plated armature
- Door status: An independent contact that works separately from the magnet to show door status not lock status
Specification
- Dimensions: 40 × 67 × 532mm (H × W × D)
