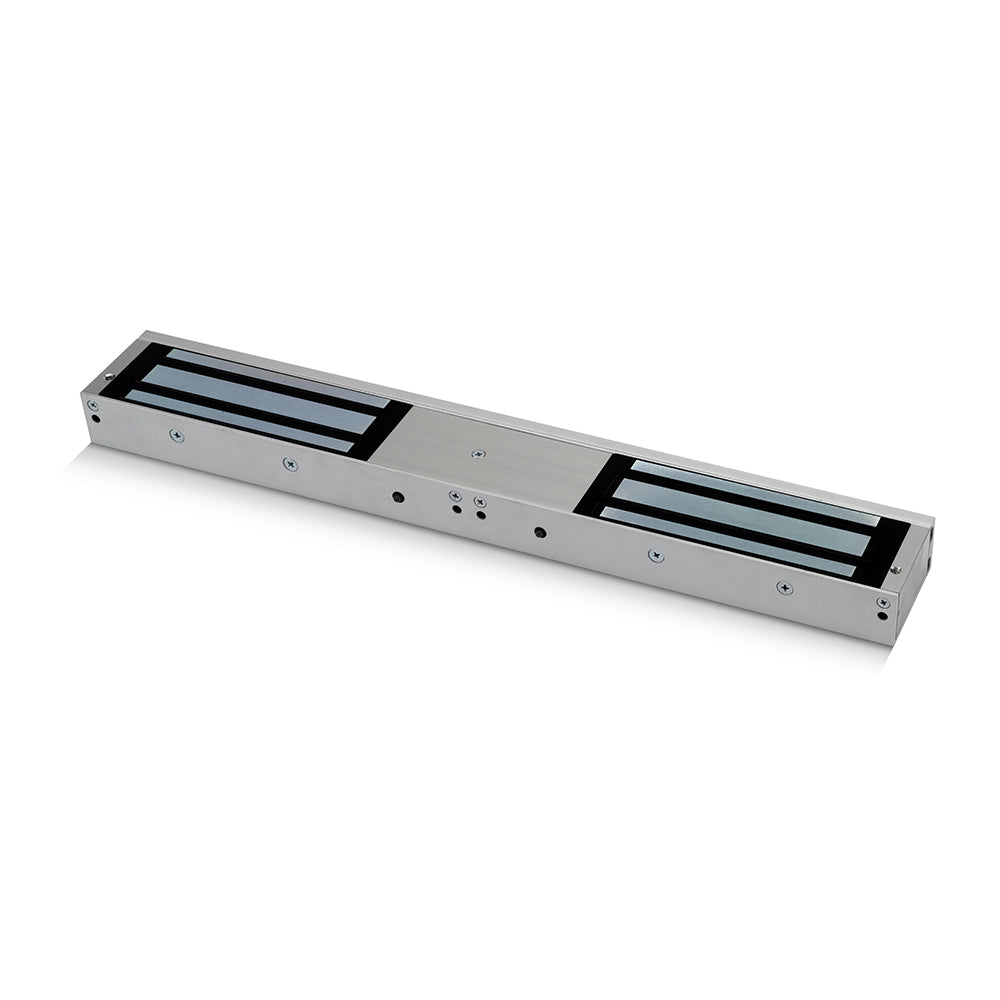

U10060 – Unmonitored Double Standard Magnet
Regular price
£154.75
inc. VAT
Couldn't load pickup availability
Guaranteed Secure payment
We accept payments from most major providers.
UPC Barcode:
For double door openings where lock monitoring is not required, the U10060 offers two holding faces rated up to 1200lbs (544Kg) each within one aluminium housing. An independent door status contact still lets your system see whether the doors are open or closed, and the operating voltage is selectable between 12 and 24Vdc.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Unmonitored
- Holding force up to 2 x 1200lbs (2 x 544Kg)
- Electro-less nickel plated armature
- Door status: An independent contact that works separately from the magnet to show door status not lock status
Specification
- Dimensions: 40 × 67 × 532mm (H × W × D)
Fast & Free Shipping - We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
Our Delivery Window we offer is 1-2 working days.
This product is covered by a 12-month warranty as standard.
