Description

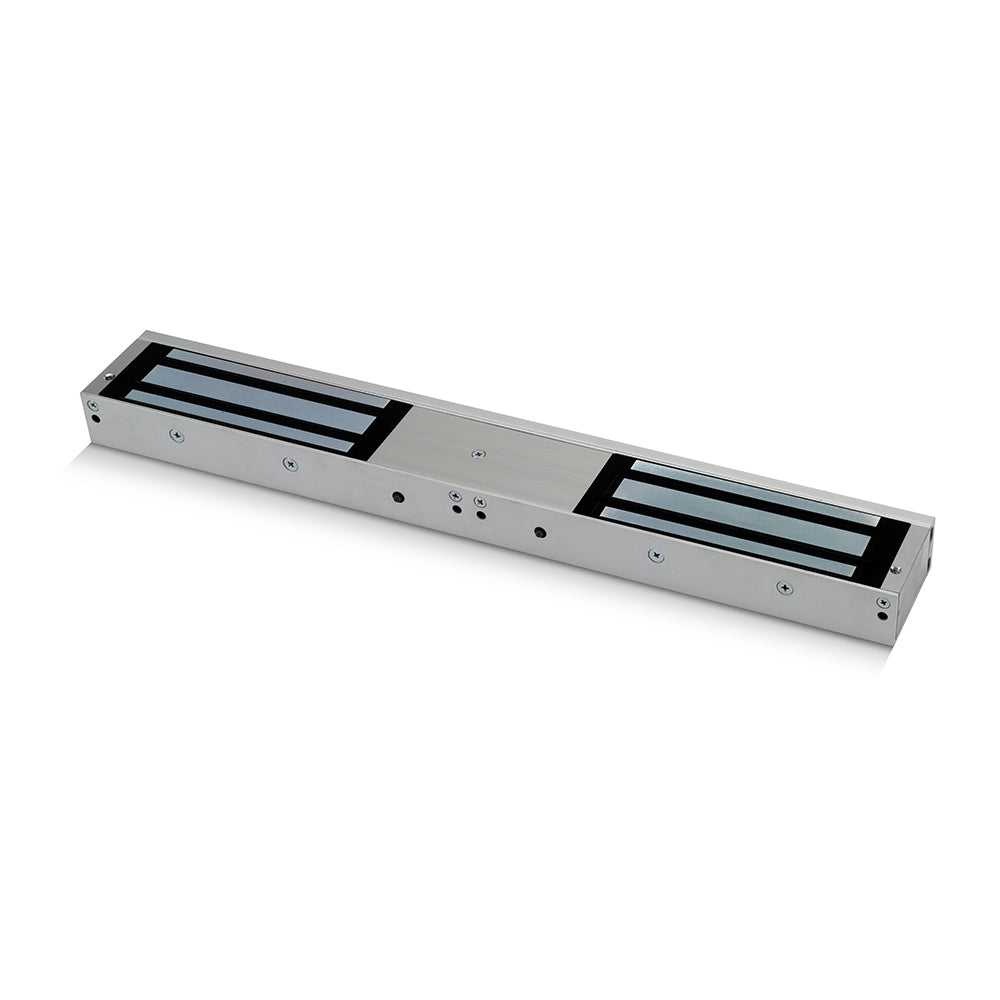

The U10040DS secures double doors with two 1200lbs (544Kg) holding faces and adds an independent door status contact that reports door position separately from lock state. Monitoring is built in, a red and green LED shows status locally, and the aluminium-housed unit accepts a selectable 12~24Vdc supply.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Monitored
- Holding force up to 2 x 1200lbs (2 x 544Kg)
- Electro-less nickel plated armature
- Door status: An independent contact that works separately from the magnet to show door status not lock status
- Status LED: Red and Green
Specification
- Dimensions: 40 × 67 × 532mm (H × W × D)
