Description

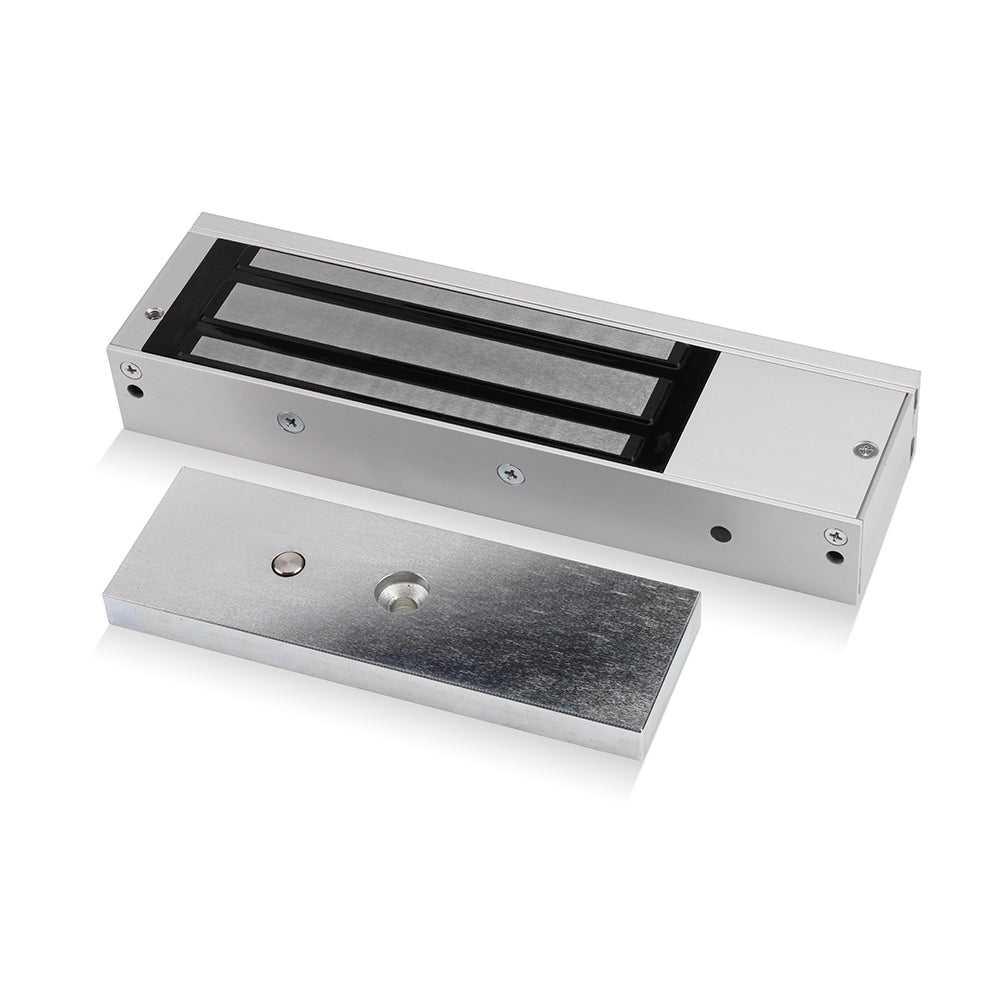

Combining lock monitoring with an independent door status contact, the U10020DSU standard magnet reports both whether the door is secured and whether it is physically closed. A red and green status LED gives clear local indication, while the magnet itself delivers up to 1200lbs (544Kg) of holding force on a selectable 12~24Vdc supply.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Monitored
- Holding force up to 1200lbs (544Kg)
- Electro-less nickel plated armature
- Door status: An independent contact that works separately from the magnet to show door status not lock status
- Status LED: Red and Green
Specification
- Dimensions: 40 × 67 × 268mm (H × W × D)
