Description

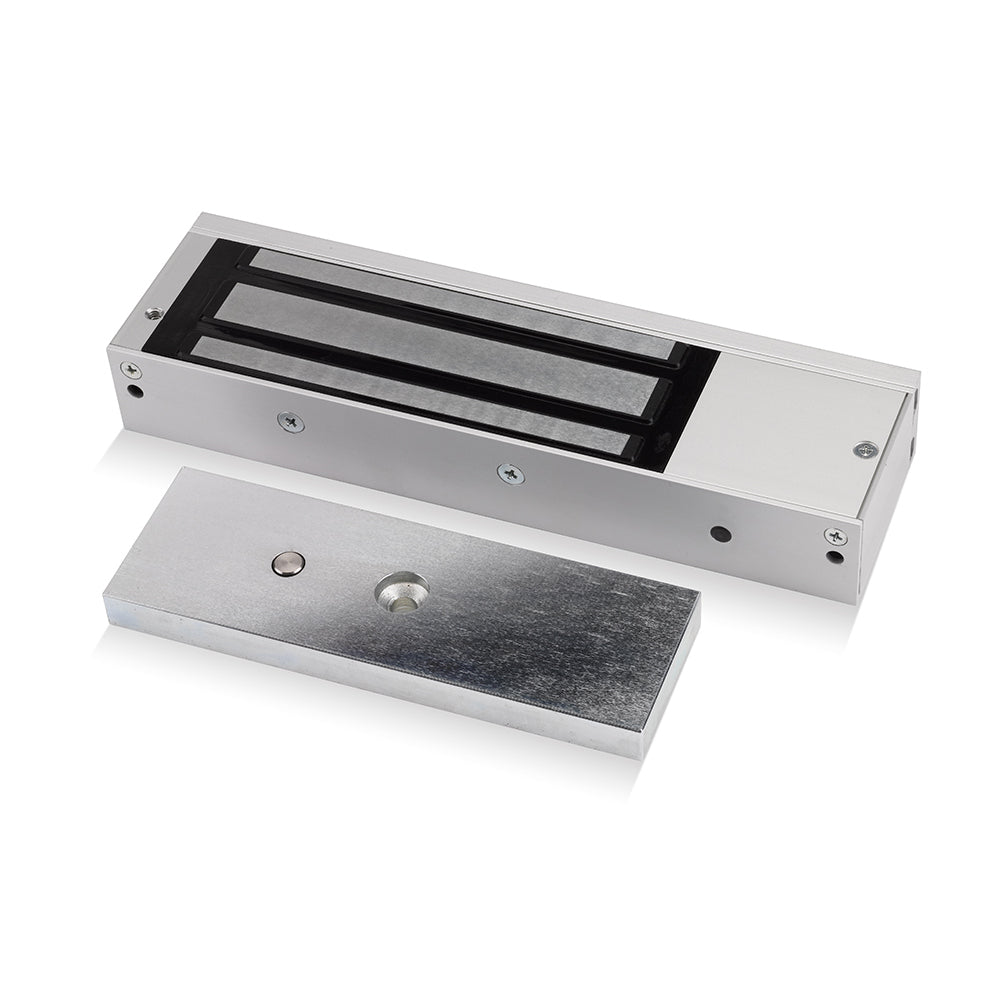

Where lock status feedback matters, the U10020 monitored standard magnet provides built-in monitoring with a red and green status LED for at-a-glance confirmation. Holding force reaches 1200lbs (544Kg), the operating voltage is selectable between 12 and 24Vdc, and the aluminium housing carries an electro-less nickel plated armature.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Monitored
- Holding force up to 1200lbs (544Kg)
- Electro-less nickel plated armature
- Status LED: RED and GREEN
Specification
- Dimensions: 40 × 67 × 268mm (H × W × D)
