Description

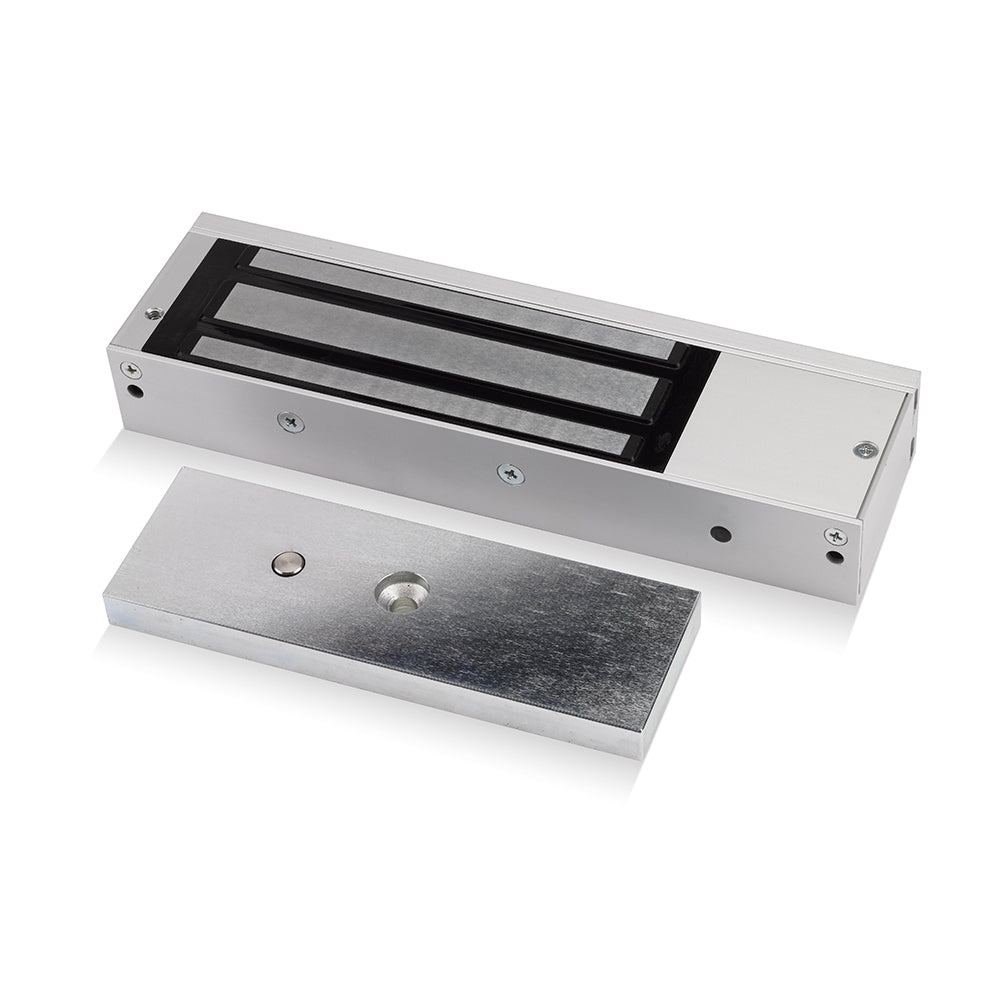

The U10010DSU pairs an unmonitored standard magnet with an independent door status contact, so your system can report whether the door is open or closed separately from the lock itself. It holds up to 1200lbs (544Kg), runs on selectable 12~24Vdc, and combines an aluminium housing with an electro-less nickel plated armature.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Unmonitored
- Holding force up to 1200lbs (544Kg)
- Electro-less nickel plated armature
- Door status: An independent contact that works separately from the magnet to show door status not lock status
Specification
- Dimensions: 40 × 67 × 268mm (H × W × D)
