Description

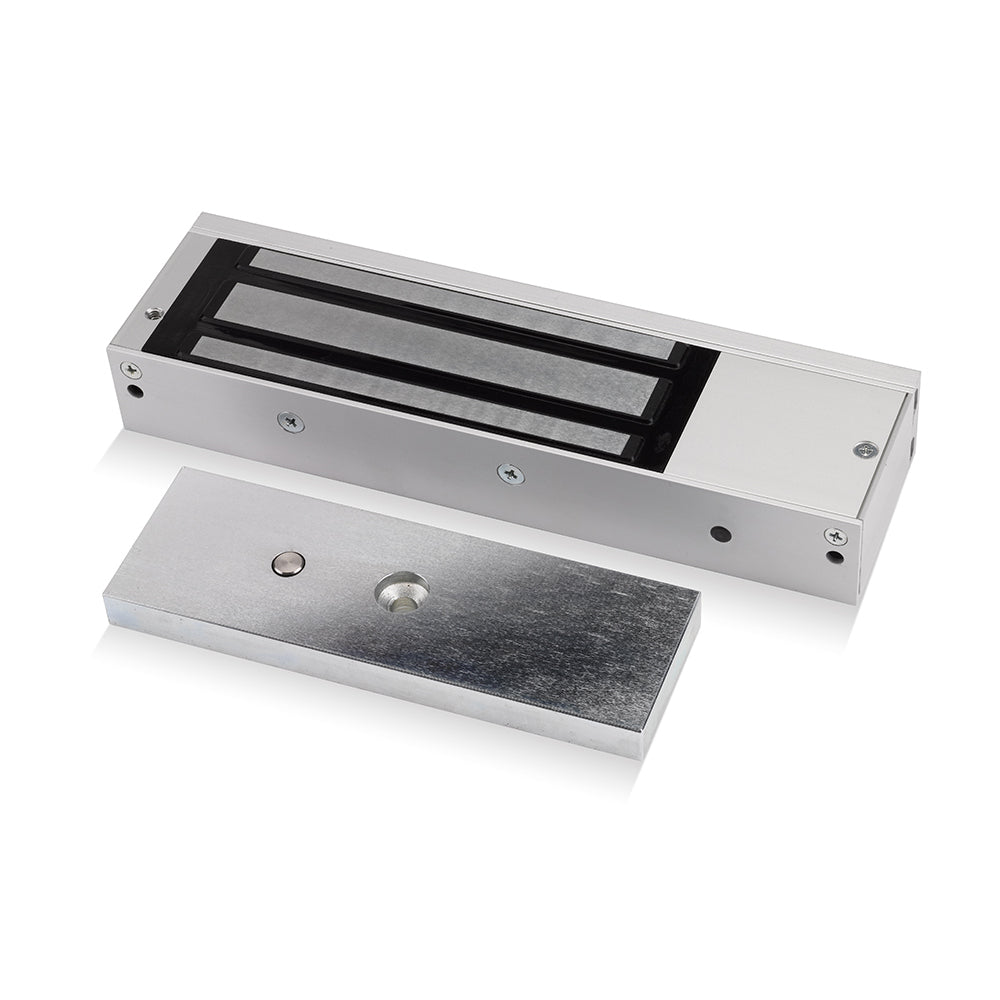

Built for straightforward, dependable door holding, the U10010 unmonitored standard magnet delivers up to 1200lbs (544Kg) of holding force from an aluminium housing. Operating voltage is selectable between 12 and 24Vdc, and the unit is finished with an electro-less nickel plated armature. At 40 × 67 × 268mm, it suits a wide range of standard internal doors.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Unmonitored
- Holding force up to 1200lbs (544Kg)
- Electro-less nickel plated armature
Specification
- Dimensions: 40 × 67 × 268mm (H × W × D)
