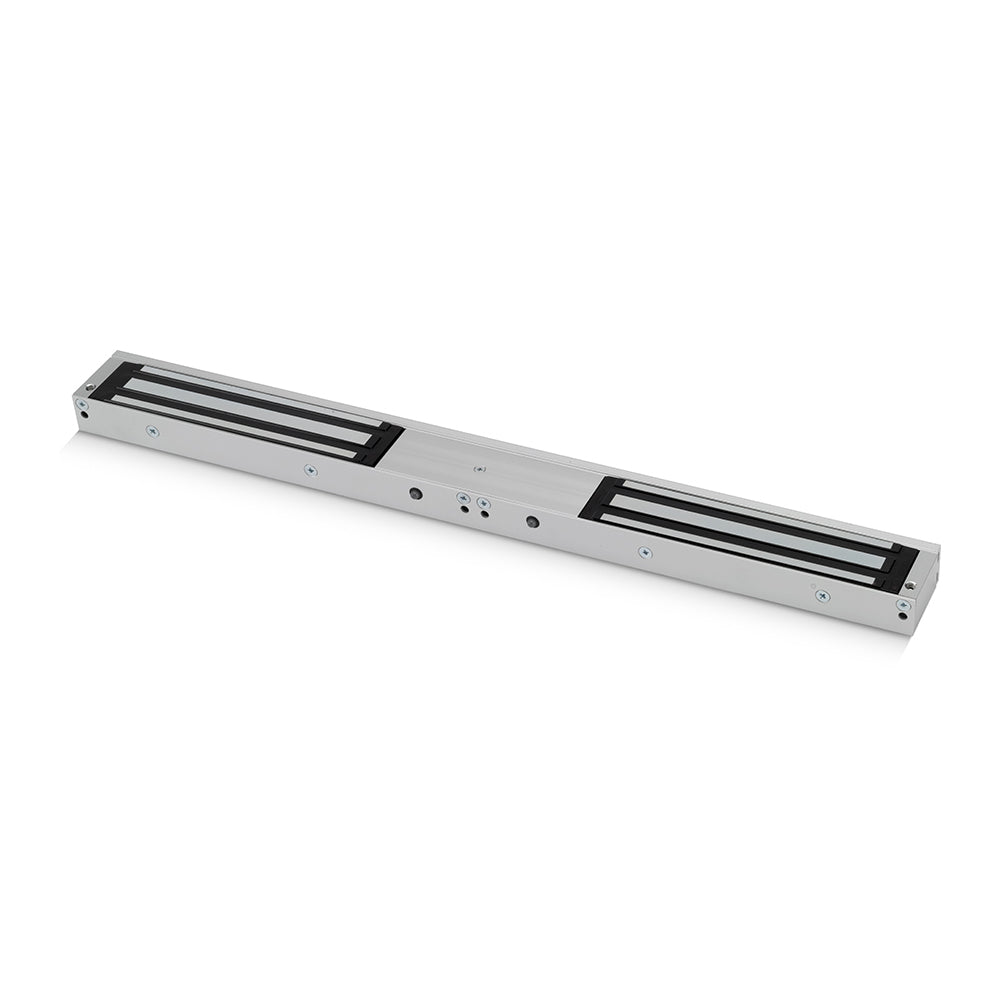

U10005DSU – Monitored Double Mini Magnet
Regular price
£152.16
inc. VAT
Couldn't load pickup availability
Guaranteed Secure payment
We accept payments from most major providers.
UPC Barcode:
For double doors needing full feedback, the U10005DSU combines red and green status LEDs with an independent door status contact that reports door position separately from lock state. Its two magnets each hold up to 600lbs (272Kg), housed in aluminium and powered by a selectable 12~24Vdc supply.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 2 x 600lbs (272Kg)
- Electro-less nickel plated armature
- Door status: An independent contact that works separately from the magnet to show door status not lock status
- Status LED: RED and GREEN
Specification
- Dimensions: 42 × 26 × 500mm (H × W × D)
