Description

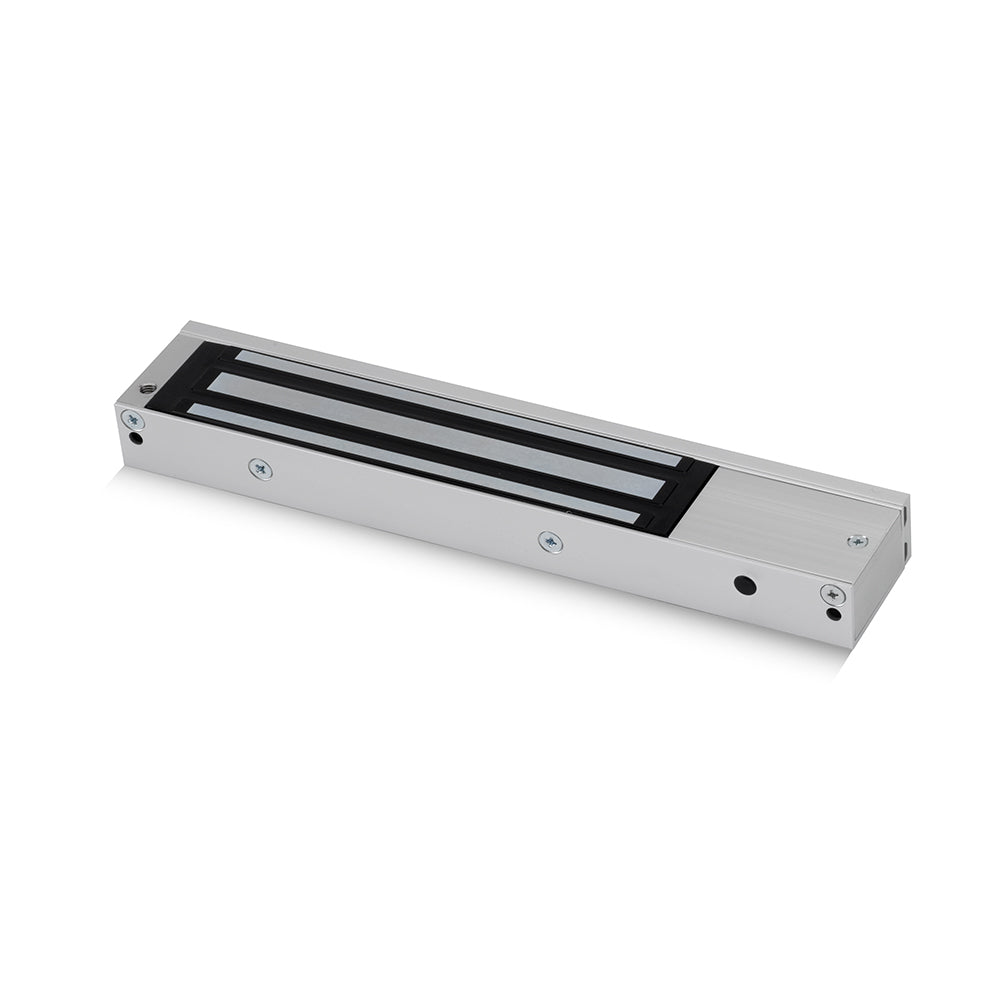

Door position reporting distinguishes the U10001DSU, an unmonitored mini magnet with an independent contact that signals whether the door is open or closed. Fail-safe by design, it holds up to 600lbs (272Kg) and operates on a selectable 12~24Vdc supply within an aluminium housing.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Unmonitored
- Holding force up to 600lbs (272Kg)
- Electro-less nickel plated armature
- Fail-Safe
- Door status: An independent contact that works separately from the magnet to show door status not lock status
Specification
- Dimensions: 42 × 26 × 250mm (H × W × D)
