Description

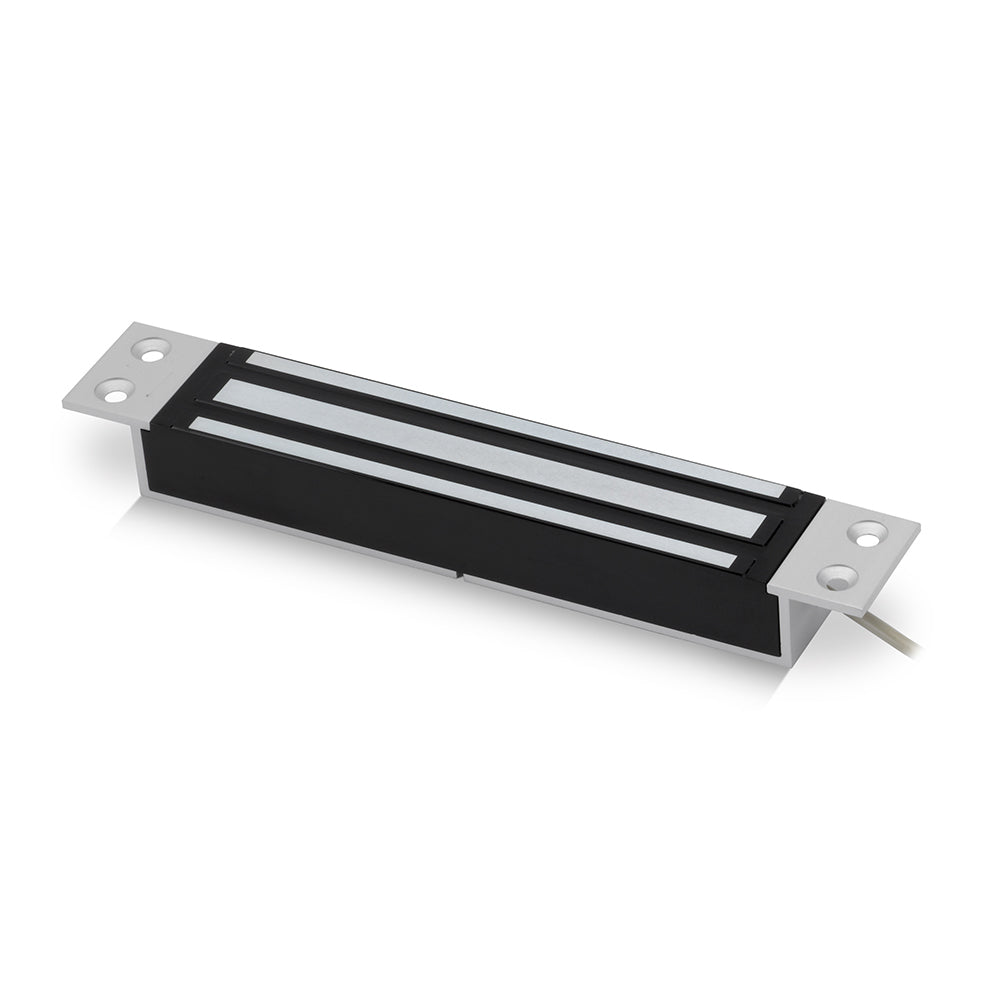

The U10000R is the monitored version of the mini mortice magnet, designed to recess into the door frame while providing up to 600lbs (272Kg) of holding force. Its aluminium housing and electro-less nickel plated armature give reliable long-term service, with a selectable 12~24Vdc operating voltage for flexible wiring.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 600lbs (272Kg)
- Electro-less nickel plated armature
- Mortice mounting
Specification
- Dimensions: 27 × 38 × 228mm (H × W × D)
