Description

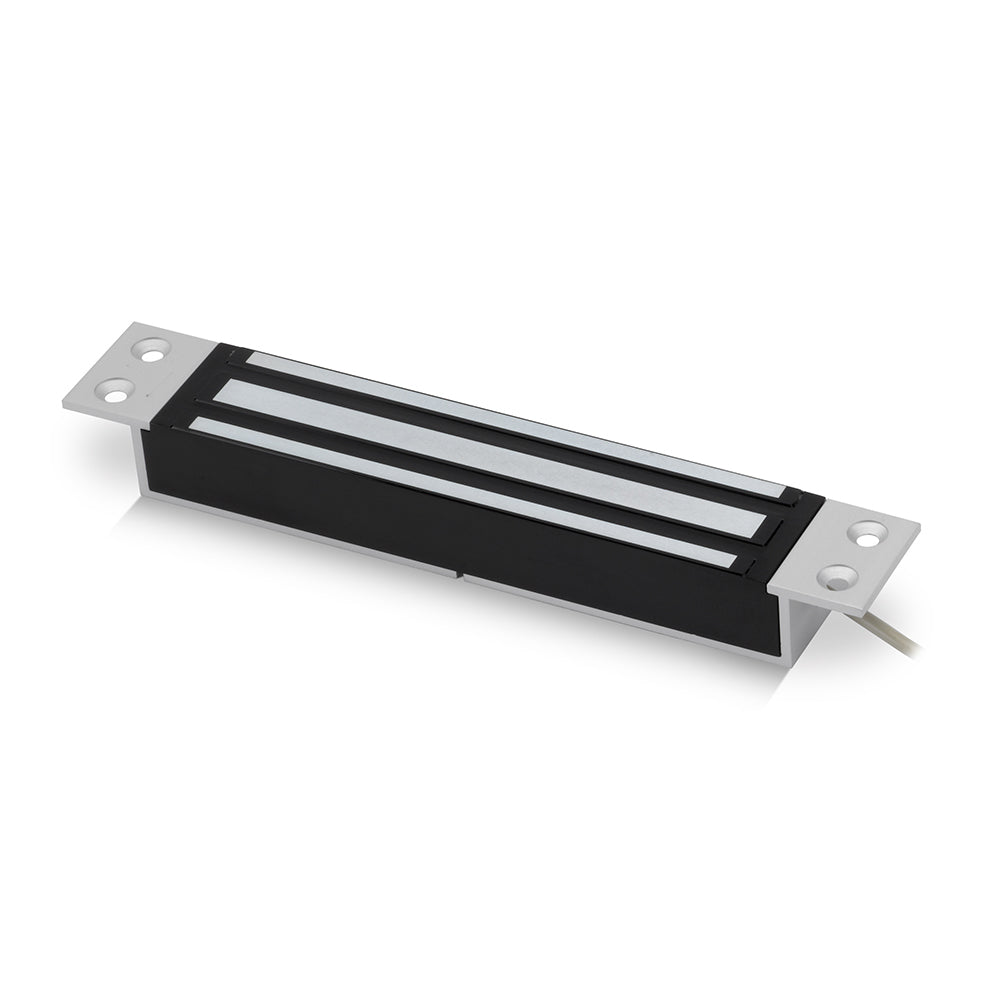

Mortice mounting lets the U10000 mini magnet sit flush within the frame for a neat, unobtrusive installation. This unmonitored unit holds up to 600lbs (272Kg), features an aluminium housing with an electro-less nickel plated armature, and accepts a selectable 12~24Vdc supply to suit the wider system.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 600lbs (272Kg)
- Electro-less nickel plated armature
- Mortice mounting
Specification
- Dimensions: 27 × 38 × 228mm (H × W × D)
