Description

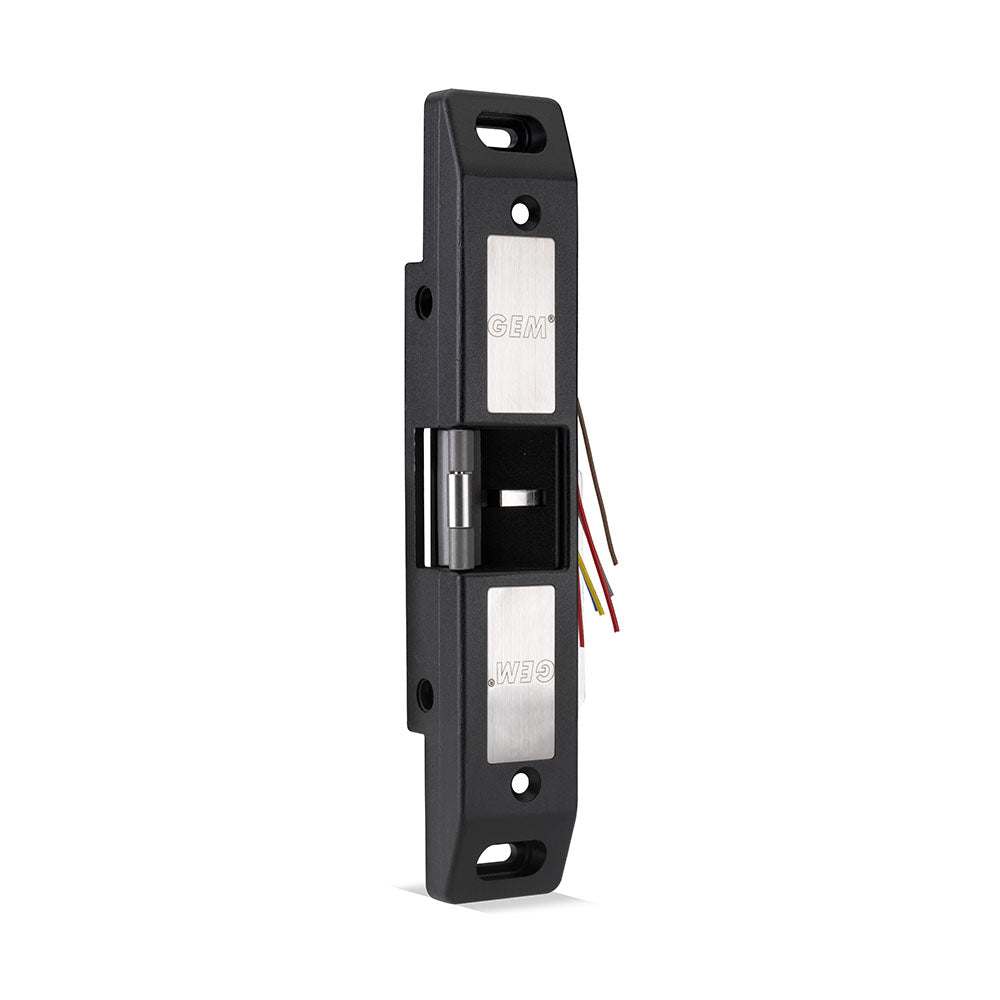

Versatility defines the GK1100 electric release, which accepts anything from 12 to 28V AC or DC and can be set to fail-safe or fail-secure. A 17mm maximum latch throw and suitability for panic bar latches broaden its uses, while lock/unlock and door status outputs keep the control system informed.
Key Features
- Operating voltage 12~28Vac/Vdc
- Material: Metal surface
- Fail-Safe/Fail-Secure (Selectable)
- Long life solenoid
- 17mm maximum latch throw
- Lock & unlock / door status output
- Suitable with panic bar (Latch)
Specification
- Dimensions: 20 × 40 × 232mm (H × W × D)
