Description

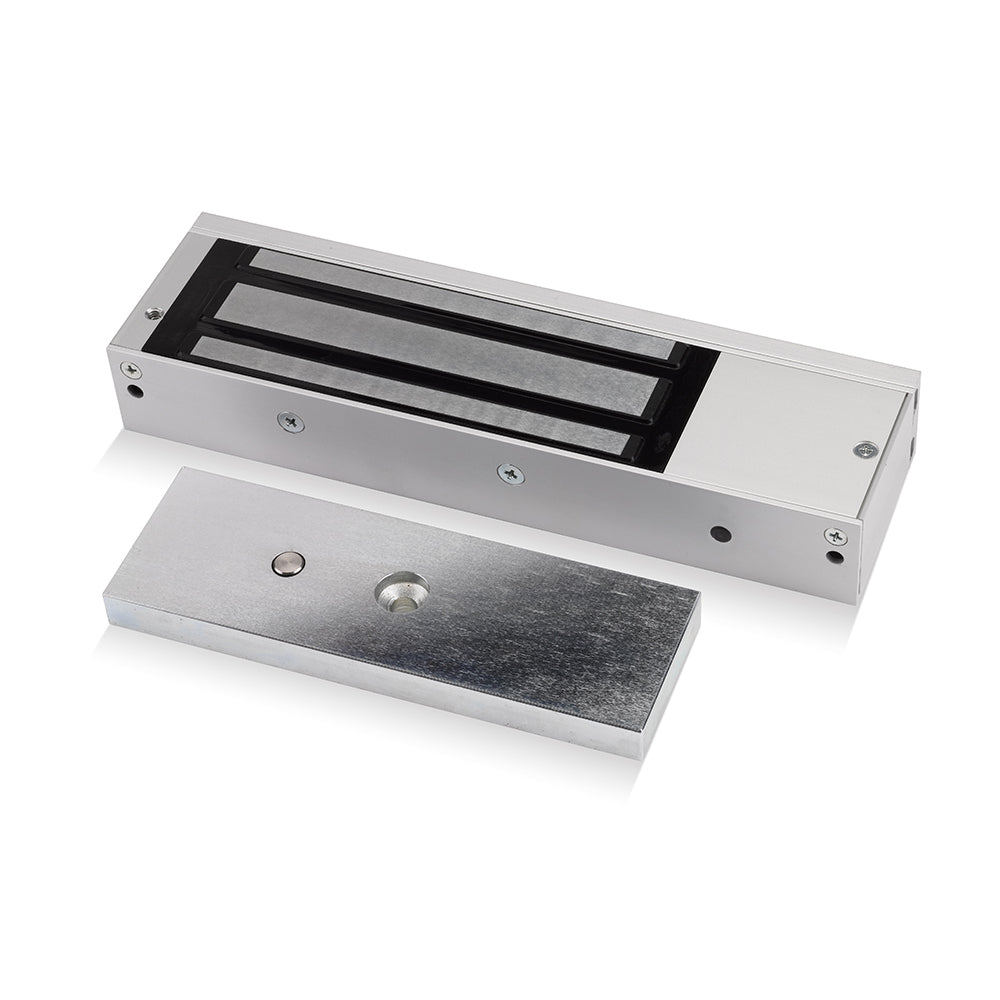

The FR-U10020DSU is a monitored standard magnet for professional access control installations, delivering 1200lbs holding force, built-in monitoring and selectable 12/24Vdc operation. Supplied by SecureMyDoor with full UK support and trade pricing available.
Key Features
- FD30 + FD60 Rated
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Monitored
- Safety bolts fitted
- Fire tested: BS EN1634:1
- Holding force up to 1200lbs (544Kg)
- Electro-less nickel plated armature
- Door status: An independent contact that works separately from the magnet to show door status not lock status
- 1 Hour UK fire certificate
- Status LED: Red and Green
Specification
- Dimensions: 40 × 67 × 268mm (H × W × D)
