Description

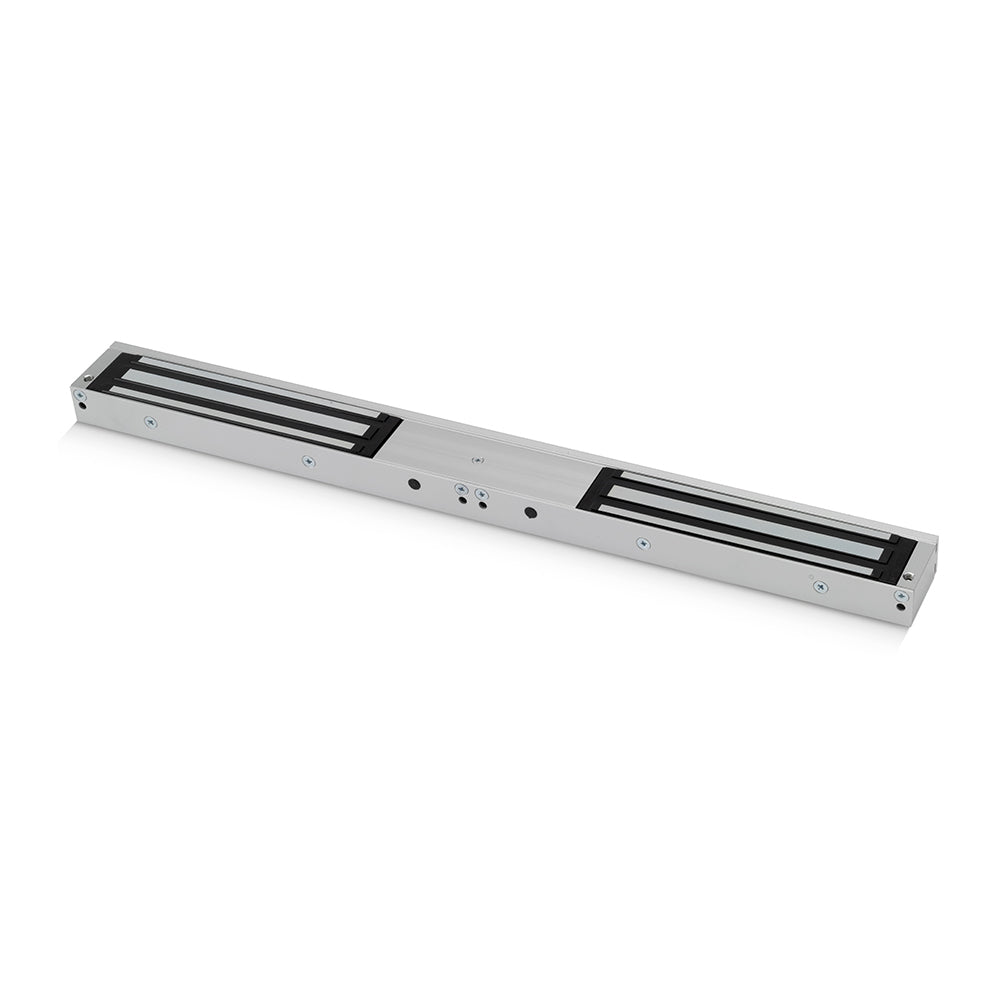

Twin 600lbs (272kg) magnets make the FR-U10004 a fire rated choice for double door openings where monitoring is not needed. Housed in a 500mm aluminium body with safety bolts fitted, it operates fail-safe on selectable 12–24Vdc and holds FD30 and FD60 ratings with a one hour UK fire certificate.
Key Features
- FD30 + FD60 Rated
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Safety bolts fitted
- Fire tested: BS EN1634:1
- Holding force up to 2 x 600lbs (272Kg)
- Electro-less nickel plated armature
- 1 Hour UK fire certificate
- Fail-Safe
Specification
- Dimensions: 26 × 42 × 500mm (H × W × D)
