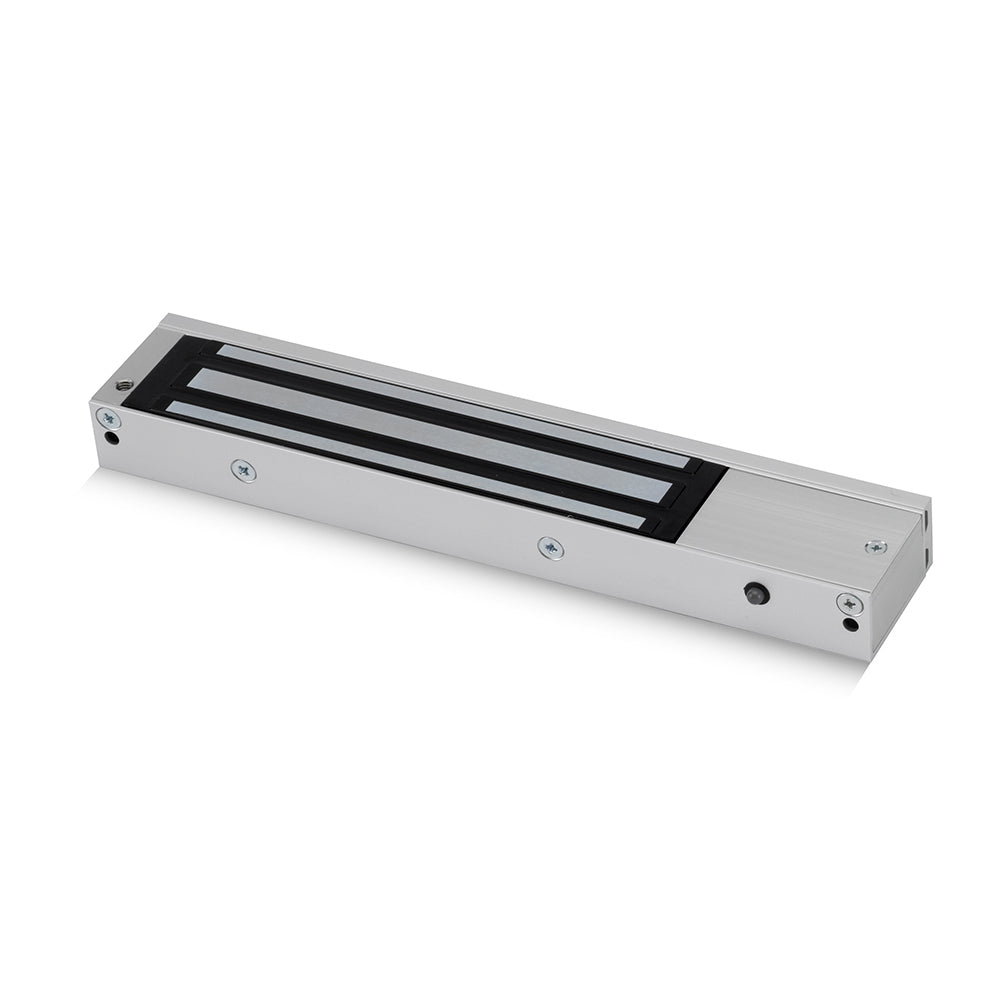

FR-U10002DSU – Fire Rated Monitored Mini Magnet
Regular price
£110.97
inc. VAT
Couldn't load pickup availability
Guaranteed Secure payment
We accept payments from most major providers.
UPC Barcode:
Both lock and door condition are visible with the FR-U10002DSU, which combines monitoring and status LEDs with an independent door status contact. This fail-safe mini magnet is FD30 and FD60 rated, holds up to 600lbs (272kg), takes selectable 12–24Vdc and includes a one hour UK fire certificate.
Key Features
- FD30 + FD60 Rated
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Monitored
- Safety bolts fitted
- Fire tested: BS EN1634:1
- Holding force up to 600lbs (272Kg)
- Electro-less nickel plated armature
- Fail-Safe
- Door status: An independent contact that works separately from the magnet to show door status not lock status
- 1 Hour UK fire certificate
- Status LED: Red and Green
Specification
- Dimensions: 42 × 26 × 250mm (H × W × D)
