Description

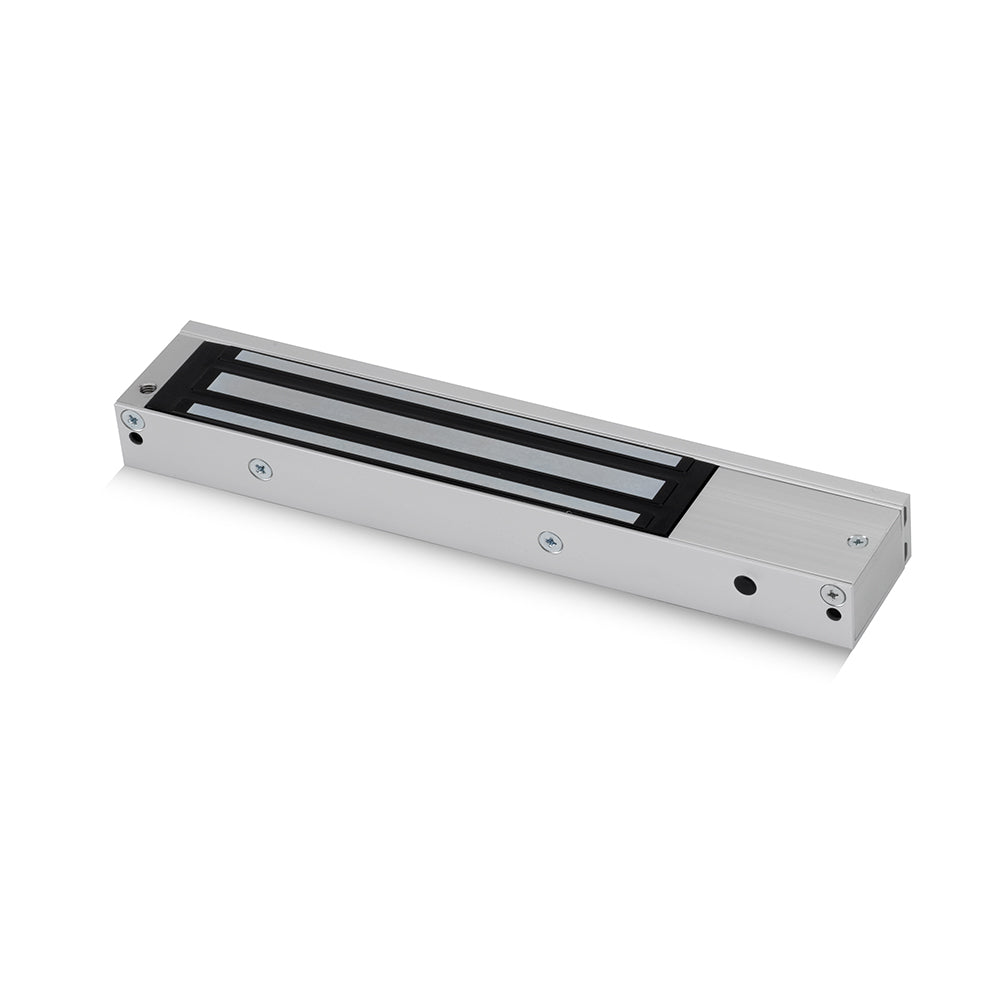

A separate door status contact allows the FR-U10001DSU to report door position independently of the magnet's own state. Fire rated FD30 and FD60 with a one hour UK certificate, this unmonitored mini magnet holds up to 600lbs (272kg), runs fail-safe on selectable 12–24Vdc and has safety bolts fitted.
Key Features
- FD30 + FD60 Rated
- Operating voltage 12~24Vdc (Selectable)
- Unmonitored
- Aluminium housing
- Fire tested: BS EN1634:1
- Safety bolts fitted
- Holding force up to 600lbs (272Kg)
- Electro-less nickel plated armature
- Fail-Safe
- 1 Hour UK fire certificate
- Door status: An independent contact that works separately from the magnet to show door status not lock status
Specification
- Dimensions: 42 × 26 × 250mm (H × W × D)
