Description

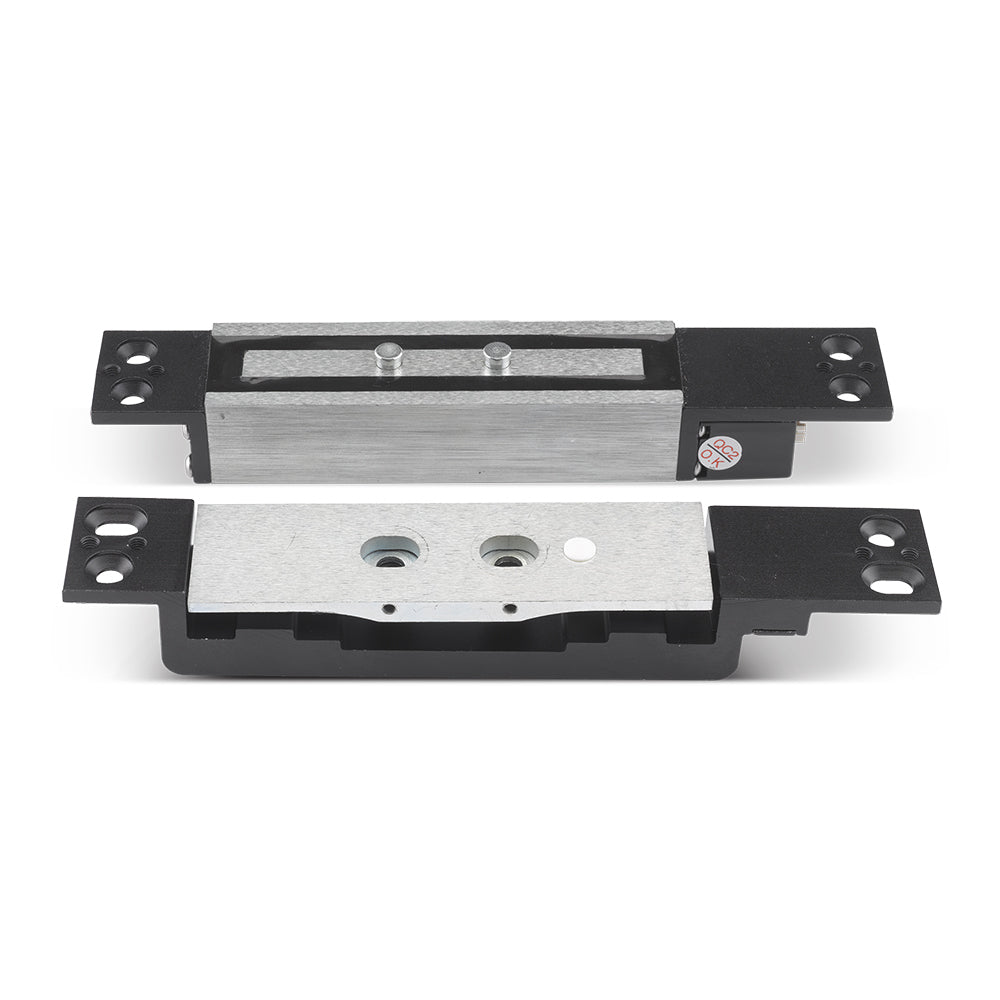

Fire performance is central to the FR-SL500 micro shear-lock, which carries FD30 and FD60 ratings, BS EN1634:1 fire testing and a one hour UK fire certificate. It holds up to 2,600lbs (1,200Kg) in shear, offers an adjustable locking delay from 0.5 to 25 seconds, and runs on 12~24Vdc.
Key Features
- FD30 + FD60 Rating
- Operating voltage 12~24Vdc
- Holding force up to 2,600lbs (1,200Kg) in shear
- Locking time delay: 0.5 to 25 seconds (Adjustable)
- N.C/N.O/Com
- Fire tested: BS EN1634:1
- 1 Hour UK fire certificate
Specification
- Dimensions: 25 × 30 × 182mm (H × W × D)
