Description

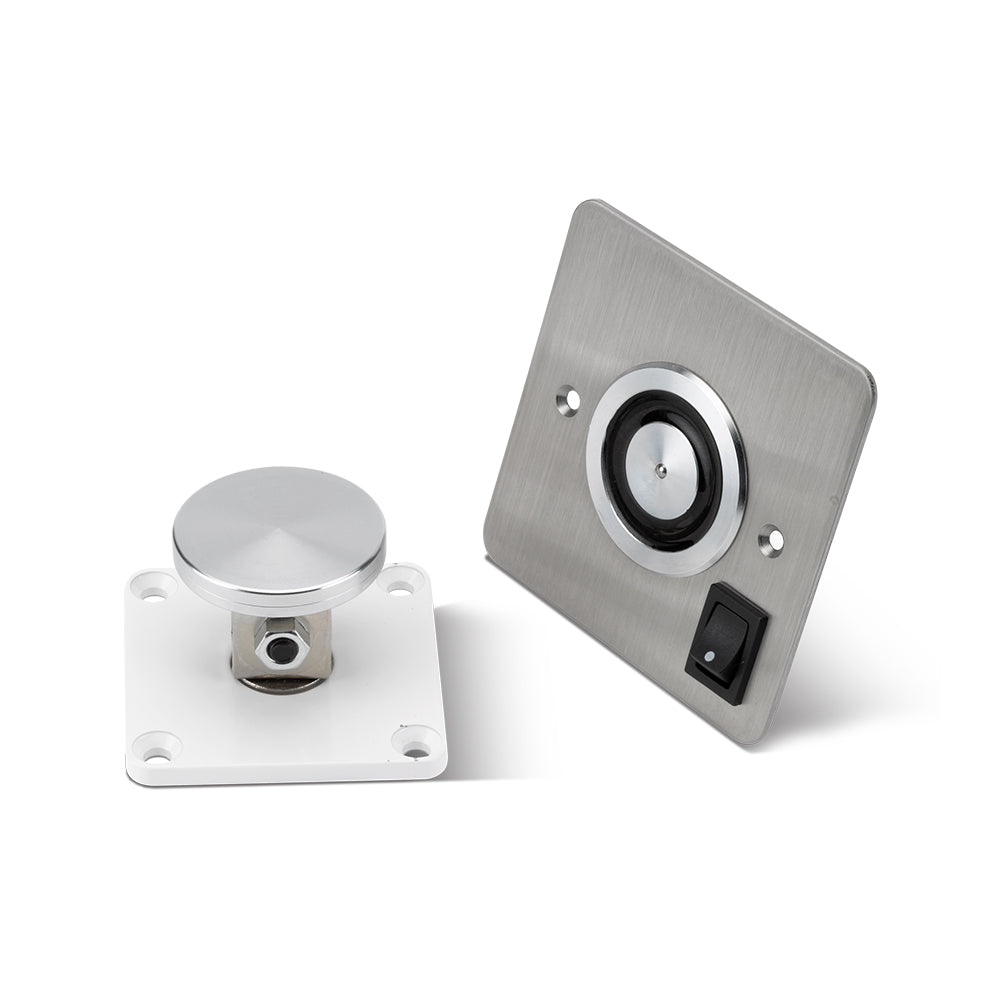

This 24Vdc flush-mount retaining magnet, the FR-GD650S-24, holds doors with up to 70lbs (32kg) of force from a stainless steel body measuring 34 × 65 × 90mm. It carries FD30 and FD60 ratings, a one hour UK fire certificate, BS EN1155 fire testing and a built-in over-ride switch.
Key Features
- FD30 + FD60 Rating
- Operating voltage 24Vdc
- Stainless Steel
- Holding force up to 70lbs (32kg)
- Fire tested: BS EN1155
- Electrical tested: BS EN1634:1
- Over-ride switch
- Flush mount
- 1 Hour UK fire certificate
Specification
- Dimensions: 34 × 65 × 90mm (H × W × D)
