Description

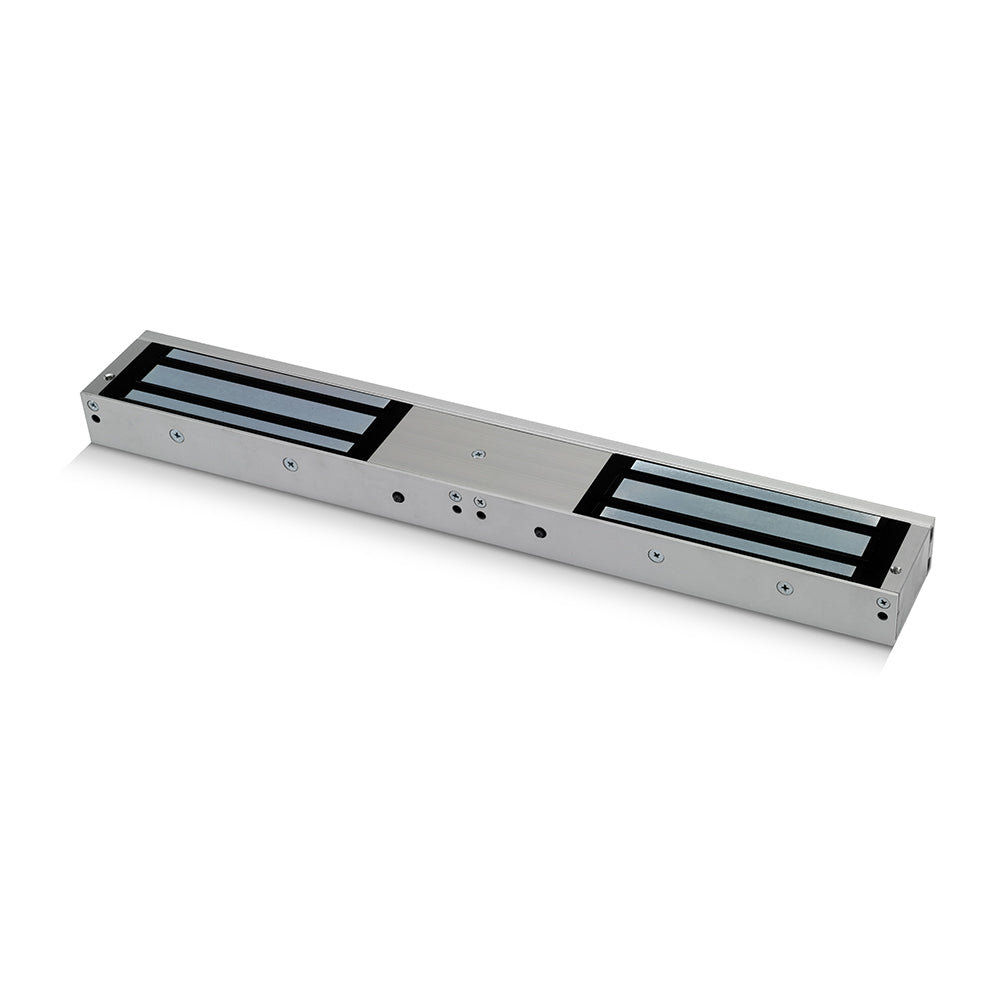

For paired doors where monitoring is not required, the FR-A10060 provides two magnets rated at up to 1200lbs (544kg) each within one 40 × 67 × 532mm aluminium body. Operation is selectable between 12 and 24Vdc, the armature is nickel plated, and the unit carries BS EN1634:1 fire testing.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Unmonitored
- Fire tested: BS EN1634:1
- Holding force up to 2 x 1200lbs (544Kg)
- Electro-less nickel plated armature
Specification
- Dimensions: 40 × 67 × 532mm (H × W × D)
