Description

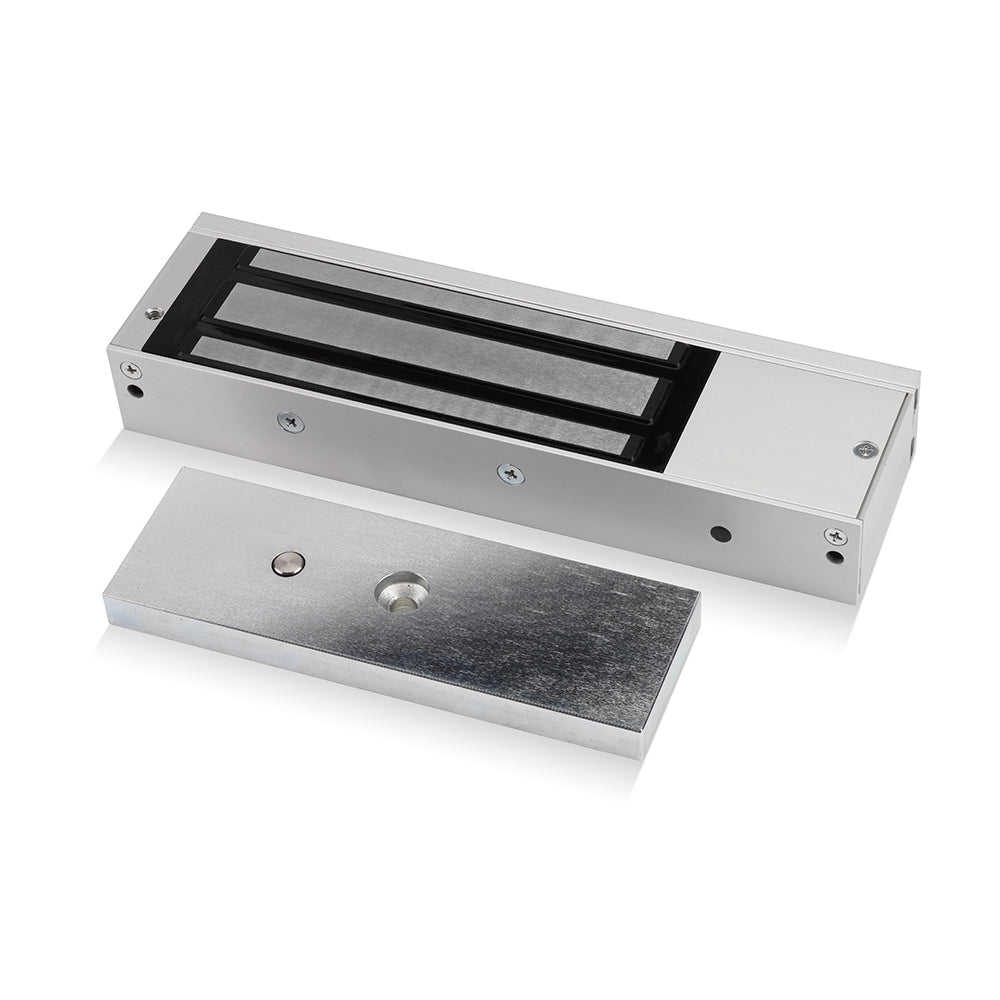

Stepping up to 1200lbs (544kg) of holding force, the FR-A10010 is an unmonitored standard magnet supplied with safety bolts fitted. Its aluminium housing measures 40 × 67 × 268mm, the armature is electro-less nickel plated, and operating voltage can be selected between 12 and 24Vdc. Fire tested to BS EN1634:1.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Unmonitored
- Safety bolts fitted
- Fire tested: BS EN1634:1
- Holding force up to 1200lbs (544Kg)
- Electro-less nickel plated armature
Specification
- Dimensions: 40 × 67 × 268mm (H × W × D)
