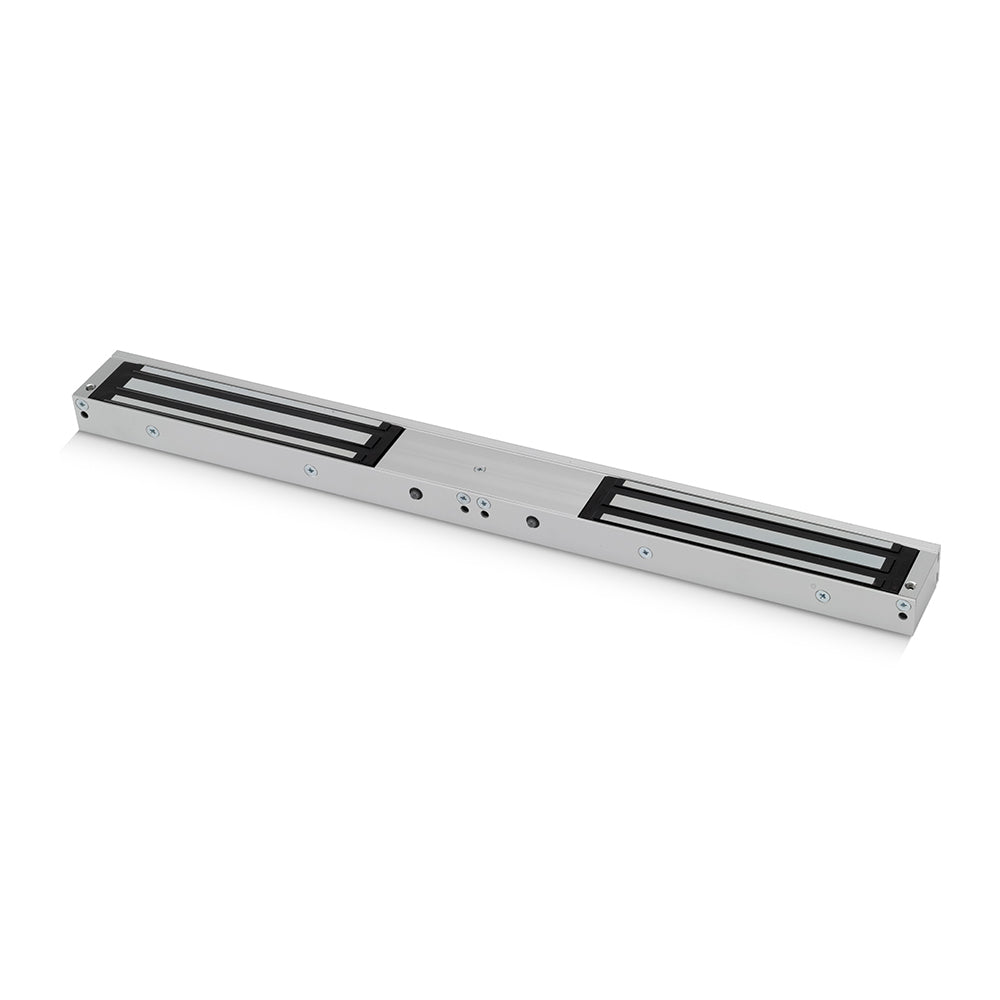

FR-A10005DS – Fire Rated Monitored Double Mini Magnet With Door Status
Regular price
£70.97
inc. VAT
Couldn't load pickup availability
Guaranteed Secure payment
We accept payments from most major providers.
UPC Barcode:
Monitoring, door status reporting and red/green LED indication all feature on the FR-A10005DS double mini magnet. Each of its two magnets holds up to 600lbs (272kg), with fail-safe operation, an electro-less nickel plated armature, selectable 12–24Vdc input and fire testing to BS EN1634:1 completing the picture.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Fail-Safe (Power to Lock)
- Holding force up to 600lbs x 2 (272Kg x 2)
- Electro-less Nickel Plated Armature
- Status LED: RED and GREEN
- Door status: An independent contact that works separately from the magnet to show door status not lock status
- Fire tested: BS EN1634:1
Specification
- Dimensions: 42 × 26 × 500mm (H × W × D)
Fast & Free Shipping - We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
Our Delivery Window we offer is 1-2 working days.
This product is covered by a 12-month warranty as standard.
