Description

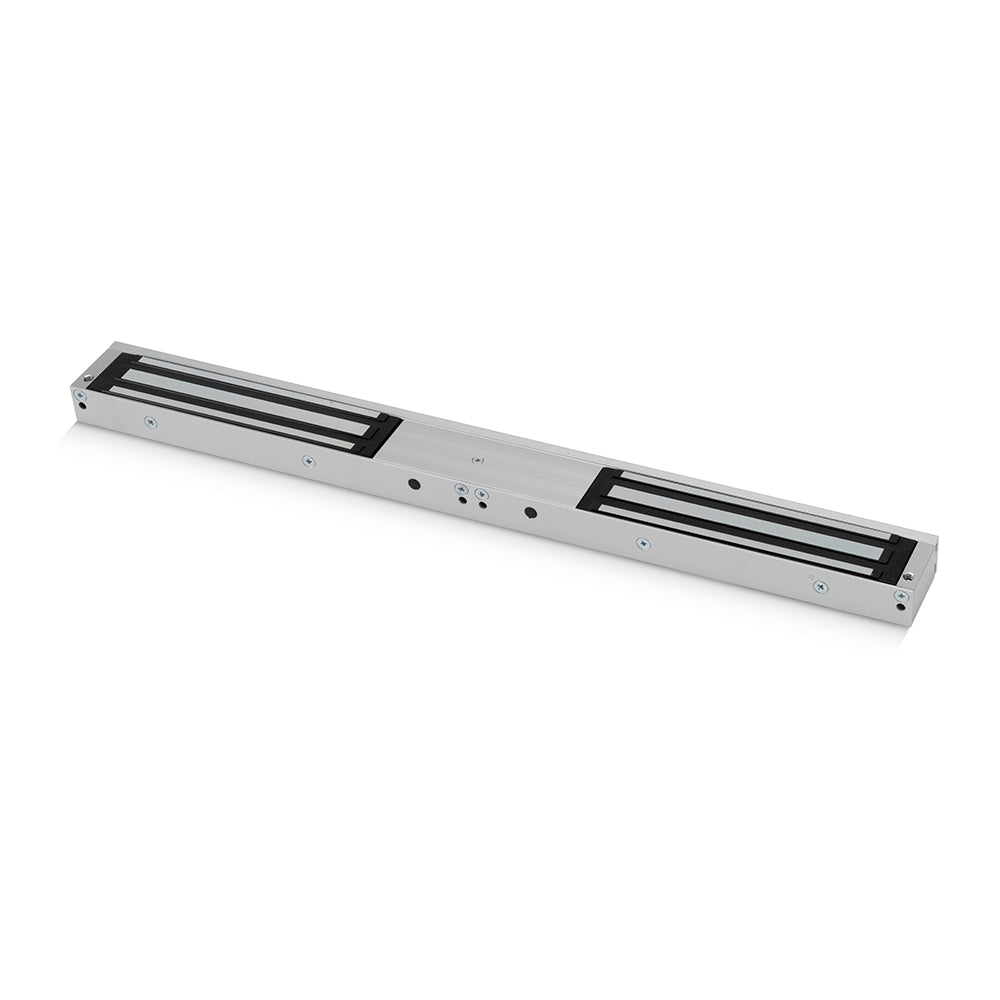

Made for pairs of doors, the FR-A10004DS combines two mini magnets in a single 500mm aluminium housing, each providing up to 600lbs (272kg) of holding force. It includes an independent door status contact, selectable 12–24Vdc operation, fail-safe power-to-lock action and fire testing to BS EN1634:1.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Fail-Safe (Power to Lock)
- Holding force up to 600lbs x 2 (272Kg x 2)
- Electro-less Nickel Plated Armature
- Door status: An independent contact that works separately from the magnet to show door status not lock status
- Fire tested: BS EN1634:1
Specification
- Dimensions: 42 × 26 × 500mm (H × W × D)
