Description

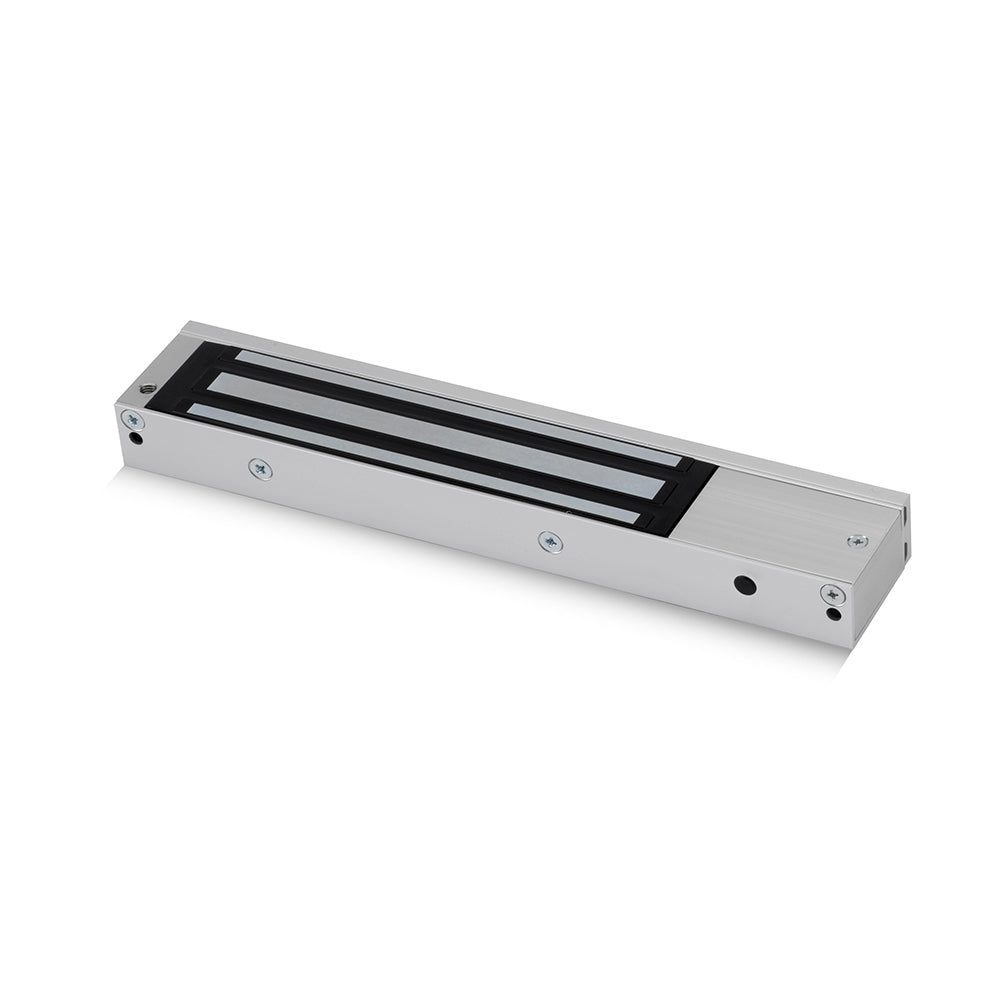

An independent door status contact sets the FR-A10001DS apart, reporting whether the door is open or closed separately from the magnet itself. This fire rated, unmonitored mini magnet holds up to 600lbs (272kg), runs on selectable 12–24Vdc, and is fire tested to BS EN1634:1 in a fail-safe aluminium housing.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Unmonitored
- Fire tested: BS EN1634:1
- Electro-less Nickel Plated Armature
- Fail-Safe (Power-to-Lock)
- Holding force up to 600lbs (272Kg)
- Door status: An independent contact that works separately from the magnet to show door status not lock status
Specification
- Dimensions: 42 × 26 × 250mm (H × W × D)
