Description

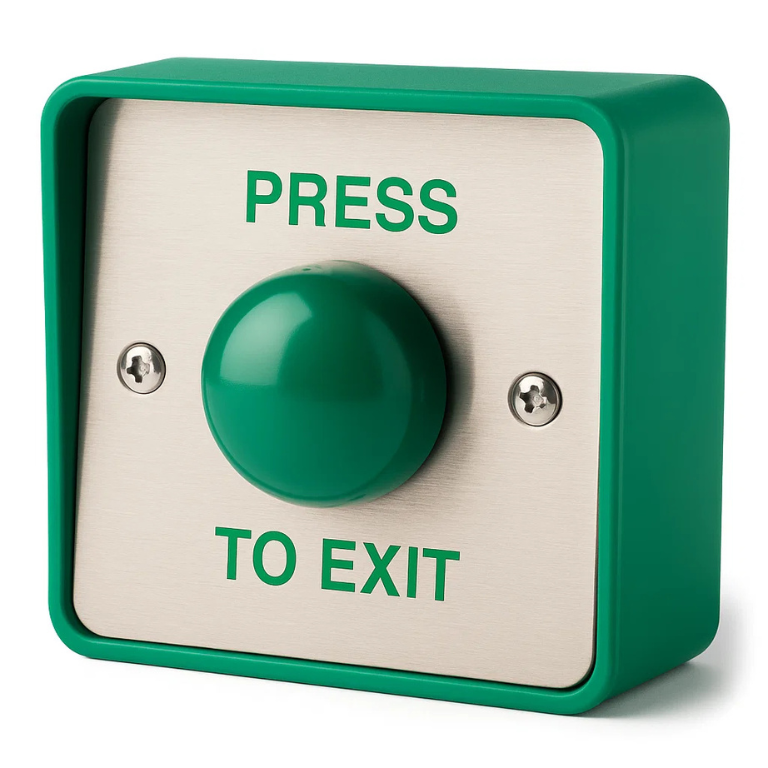

Tested to over 100,000 mechanical operations, the DRB044S-ITW-PTE combines a brushed stainless steel plate with an ABS plastic housing and an ITW green dome button. It surface mounts using the supplied security screws and switches through COM with N/O and N/C contacts, rated to 5A at 125/250Vac. Cables come included.
Key Features
- Brushed Stainless Steel Plate
- ITW Green dome button
- Surface mount
- ABS Plastic Housing
- COM-N/O – N/C
- Supplied with security screws
Specification
- Max. Rating: 5A/125/250 Vac
- Contact resistance: 50mΩ Max. (Initial).
- Operating travel: 2.7mm.
- Operating life (Mechanical): Over 100,000 times.
- Cables included.
