Description

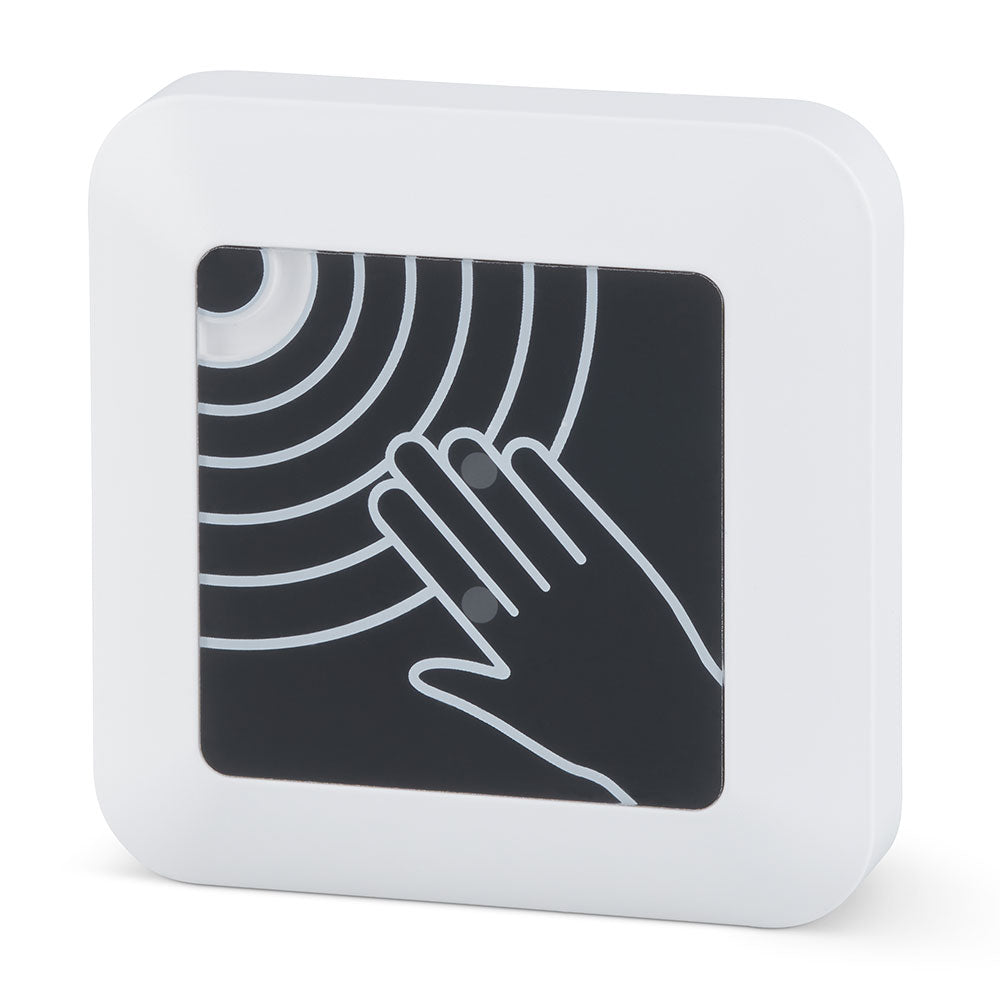

The DRB-IR-K4 senses a hand presented near its face and releases the door without any physical contact, a real advantage for hygiene-conscious sites. Built from fireproof ABS plastic in an 86 × 86 × 20mm format, it accepts 12–24V DC or 12–28V AC input, shows a red LED on standby and green when triggered, and switches NO, NC and COM contacts rated at 3A.
Key Features
- Surface Installation Material: Plastic
- Contact Rating: 3A, AC 120V/DC 30V
- Input Voltage: 12~24VDC 12~28VAC
- Output Contact: NO / NC / COM/li>
- Standby: Red LED on, visitors
- Item Type: Exit Button
- Function: Infrared No Touch
- Size: 86x86x20mm
- Material: ABS Fireproof Plastic
- Contact: NO,NC,COM
- Trigger: Green LED on
Specification
- Dimensions: 86 × 20 × 86mm (H × W × D)
