Description

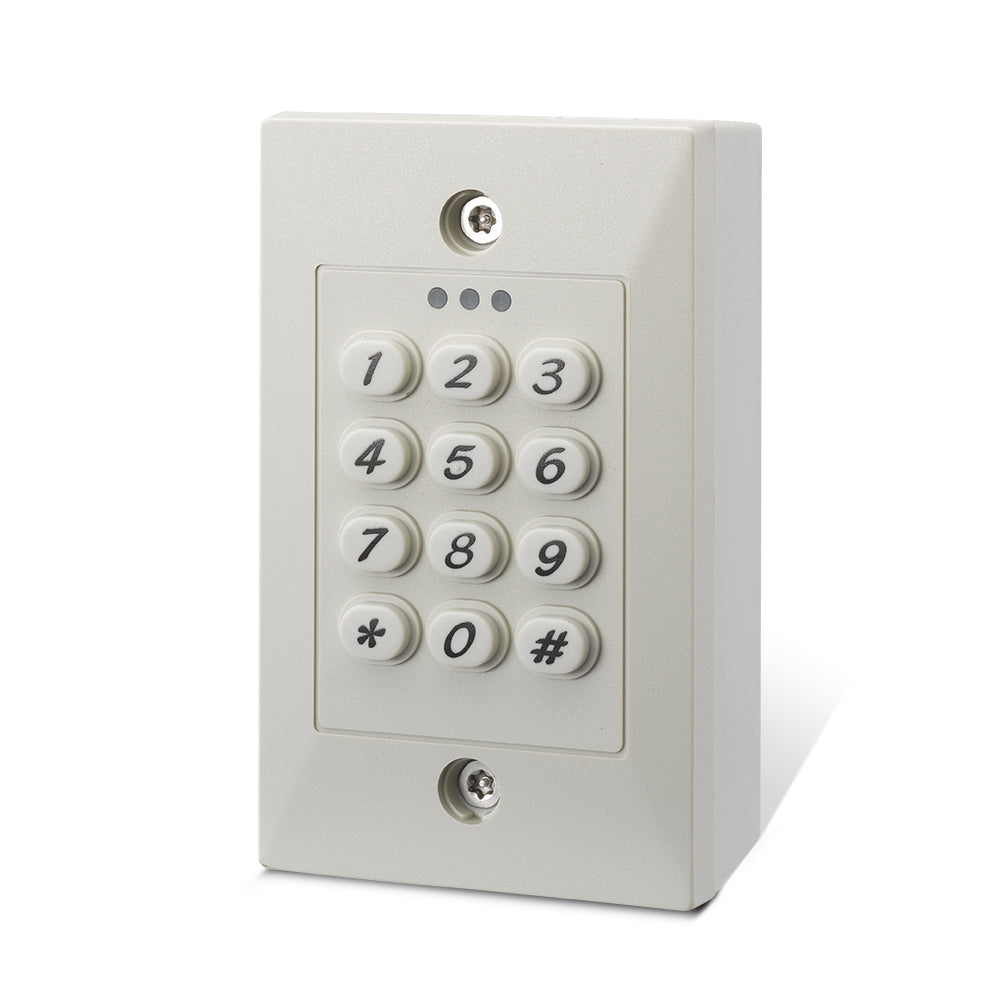

Simple code-based door entry is exactly what the DG-101WI delivers: a standalone keypad in white ABS plastic accepting up to 49+50 five-digit PIN codes. Everything is programmed directly through the keypad with a master code, and dual relay outputs let one unit control multiple devices. Red, yellow and green LEDs plus audible tones guide users through.
Key Features
- Operating voltage 12~24Vdc
- ABS white plastic
- Allows up to 49+50 PIN codes
- Dual relays output for multi control
- Fully programmable via keypad and master code
- 5 digit codes only
- 3 LED displays: Red, Yellow and Green
- With audible indication
Specification
- Dimensions: 40 × 70 × 114mm (H × W × D)
