Description

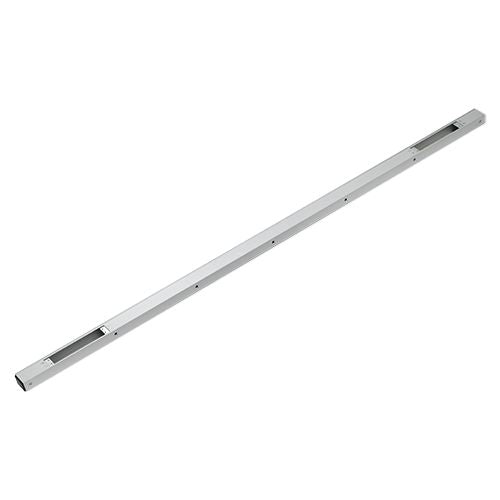

Vertical fitting is the focus of the ARCH2-2V, a two-metre slimline transom housing made from aluminium. It carries two cut outs, a 600lbs (272kg) holding force rating and a mounting plate in the box, with an extended top plate offered separately and a DS option for door status monitoring with the 10000, 10000R, U10000 and U10000R.
Key Features
- 2 meter transom housing
- Slimline
- Vertical fitting
- Aluminium
- Holding force 600lbs (272Kg)
- Two cut outs
- Complete with mounting plate
- Housings available with a suffix of ‘DS’ for door status monitoring. (For use with 10000, 10000R, U10000 & U10000R)
- Extended top plate available
Specification
- Dimensions: 70 × 50 × 7000mm (H × W × D)
