Description

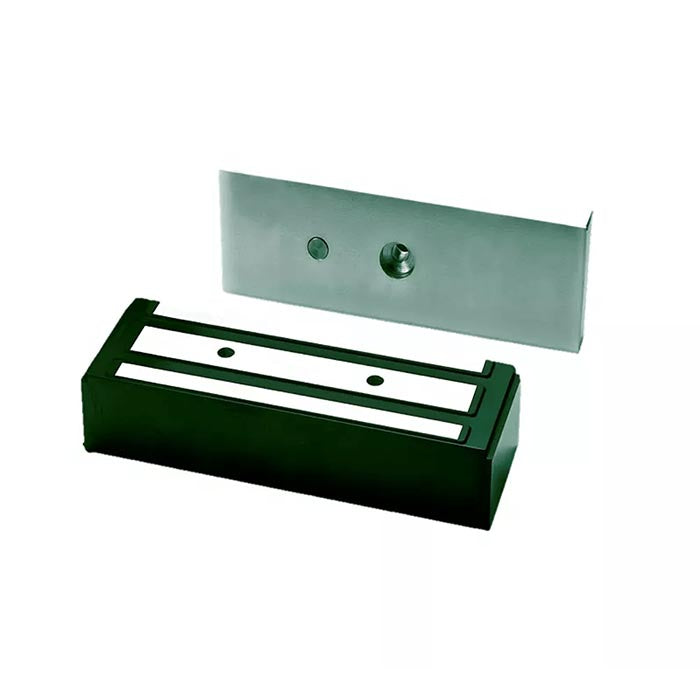

Compact at just 190mm long, the A10020M monitored standard magnet delivers up to 1200lbs (544Kg) of holding force with red and green LED status indication. The aluminium housing and electro-less nickel plated armature offer long-term durability, and the operating voltage is selectable between 12 and 24Vdc.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 1200lbs (544Kg)
- Electro-less nickel plated armature
- Status LED: Red and Green
Specification
- Dimensions: H:62 × W:38 × L:190mm (H × W × D)
