Description

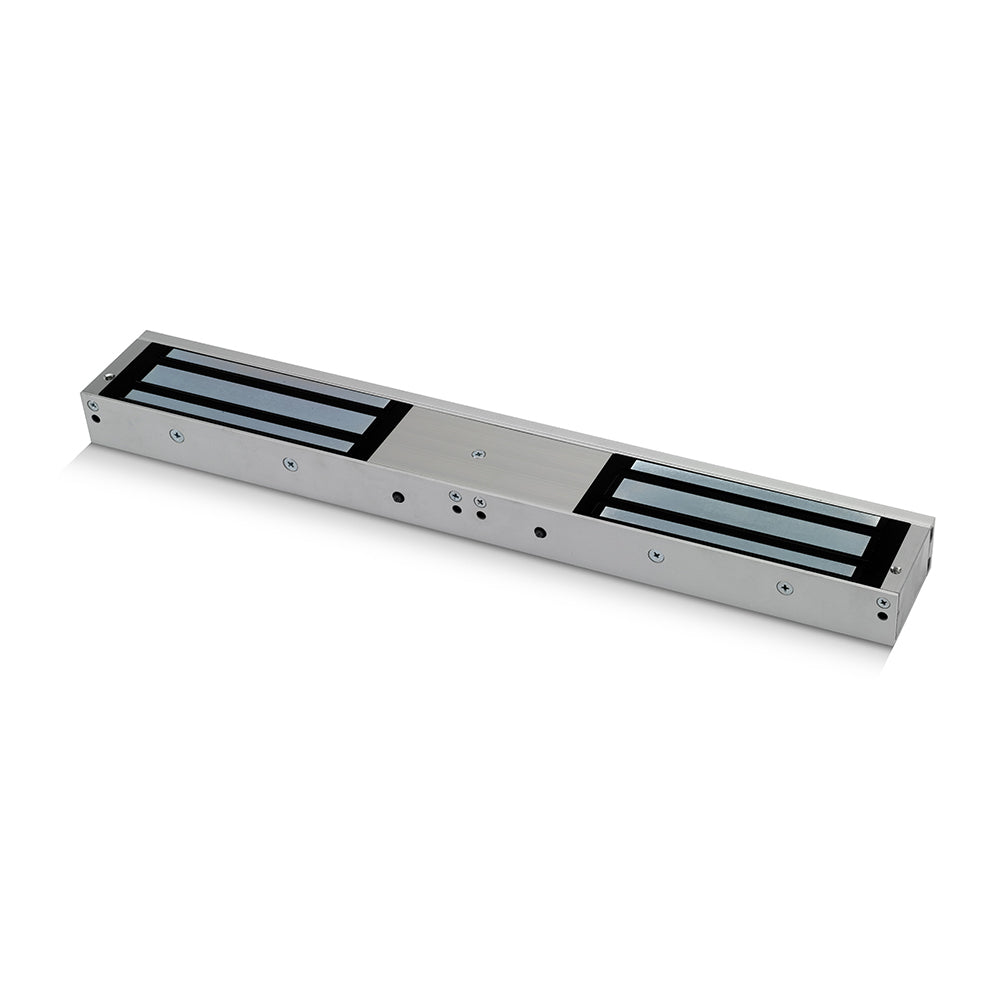

The A-10060DS is an unmonitored double standard magnet fitted with an independent door status contact, so the system can report door position without lock monitoring. Each of its two magnets holds up to 1200lbs (544Kg), housed in aluminium and powered by a selectable 12~24Vdc supply.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 2 x 1200lbs (544Kg)
- Electro-less nickel plated armature
- Door status: An independent contact that works separately from the magnet to show door status not lock status
Specification
- Dimensions: H:67 × W:40 × L:532mm (H × W × D)
