Description

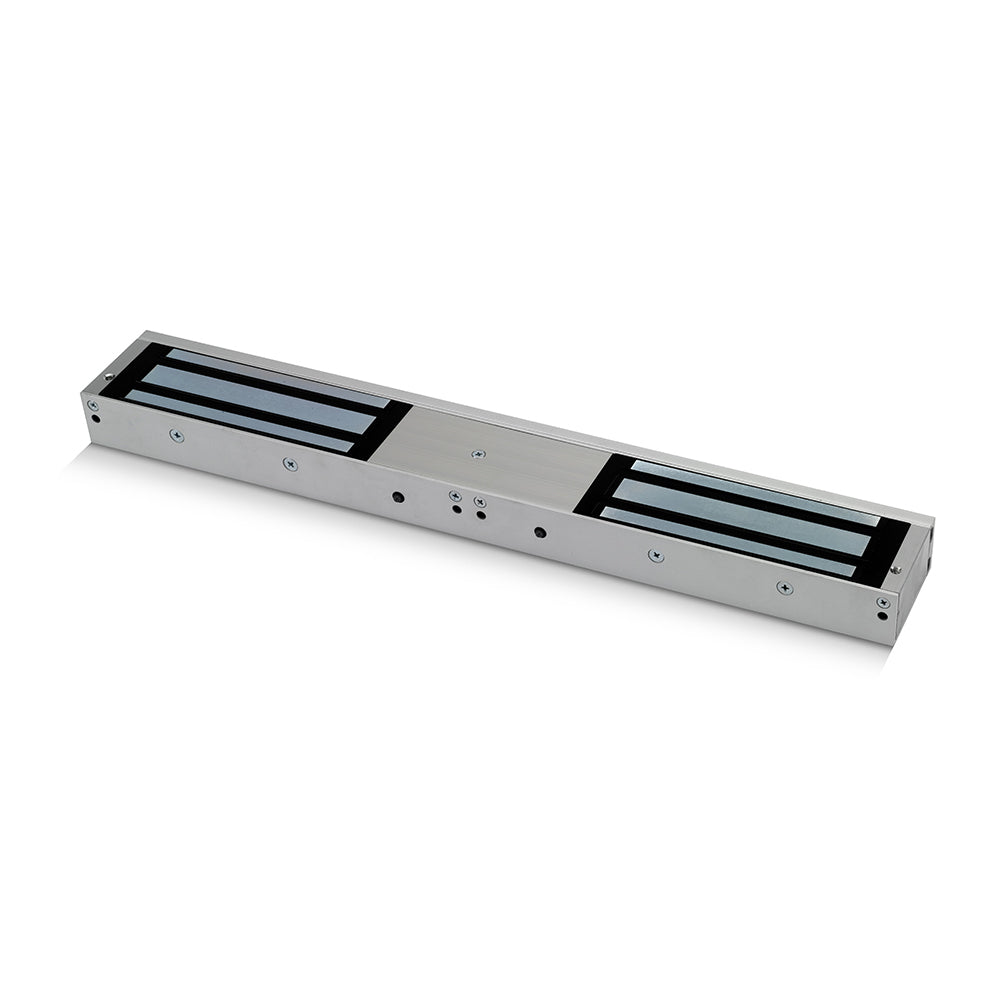

Monitoring both lock and door, the A-10040DS double standard magnet pairs red and green status LEDs with an independent door status contact that reports the position of the door itself. Its two magnets each provide up to 1200lbs (544Kg) of holding force, powered by a selectable 12~24Vdc supply within an aluminium housing.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 2 x 1200lbs (544Kg)
- Electro-less nickel plated armature
- Status LED: RED and GREEN
- Door status: An independent contact that works separately from the magnet to show door status not lock status
Specification
- Dimensions: H:67 × W:40 × L:532mm (H × W × D)
