Description

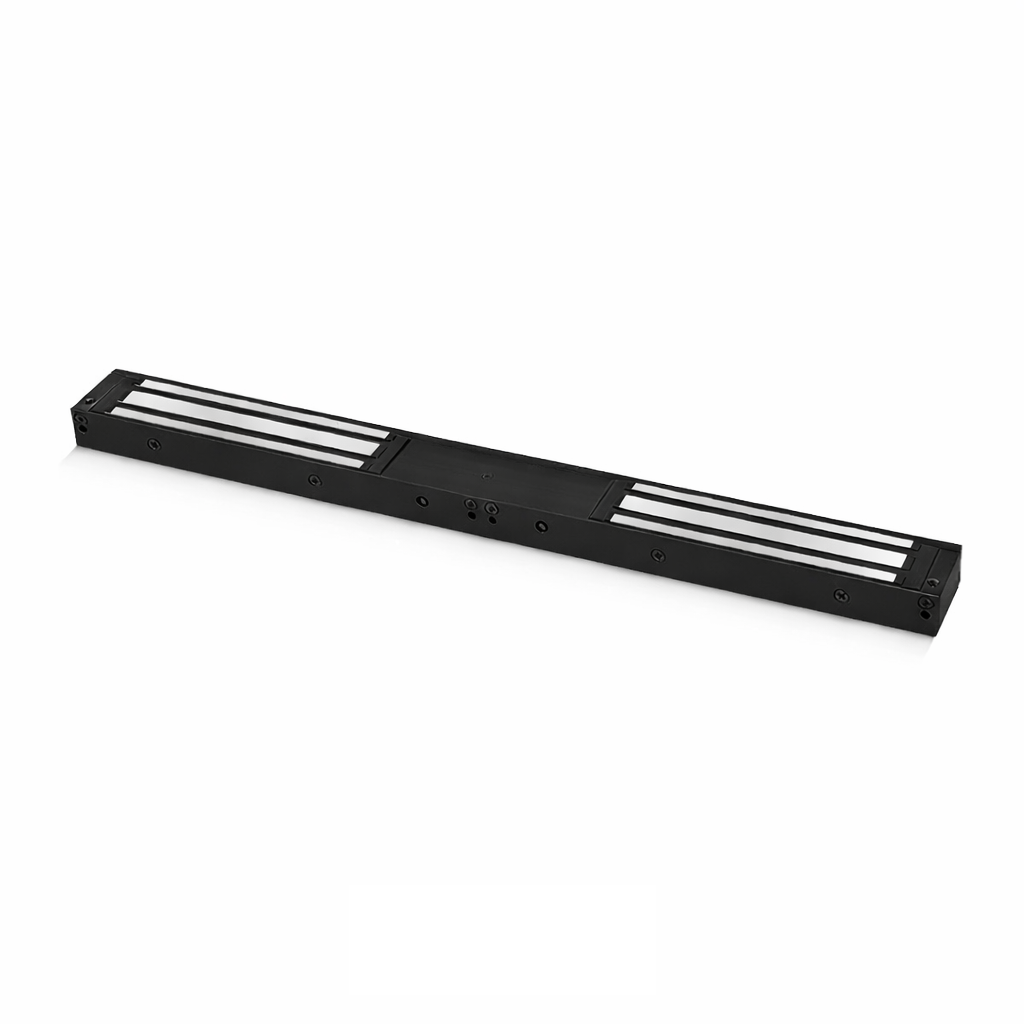

The A-10005DS-BLK is a monitored double mini magnet with door status in black for professional access control installations, delivering 600lbs holding force and selectable 12/24Vdc operation. Supplied by SecureMyDoor with full UK support and trade pricing available.
Key Features
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Architectural Black Finish
- Fail-Safe (Power to Lock)
- Holding force up to 600lbs x 2 (272Kg x 2)
- Electro-less Nickel Plated Armature
- Status LED: RED and GREEN
- Door status: An independent contact that works separately from the magnet to show door status not lock status
Specification
- Dimensions: 25 × 43 × 500mm (H × W × D)
